SHANGHAI CIRCUIT

上赛道

Brand: Shanghai. Reference: 980-5-F001-W. [Version: 304L stainless steel case, black and white dial. View other versions →] Launch date: 2022-Month?-Date?

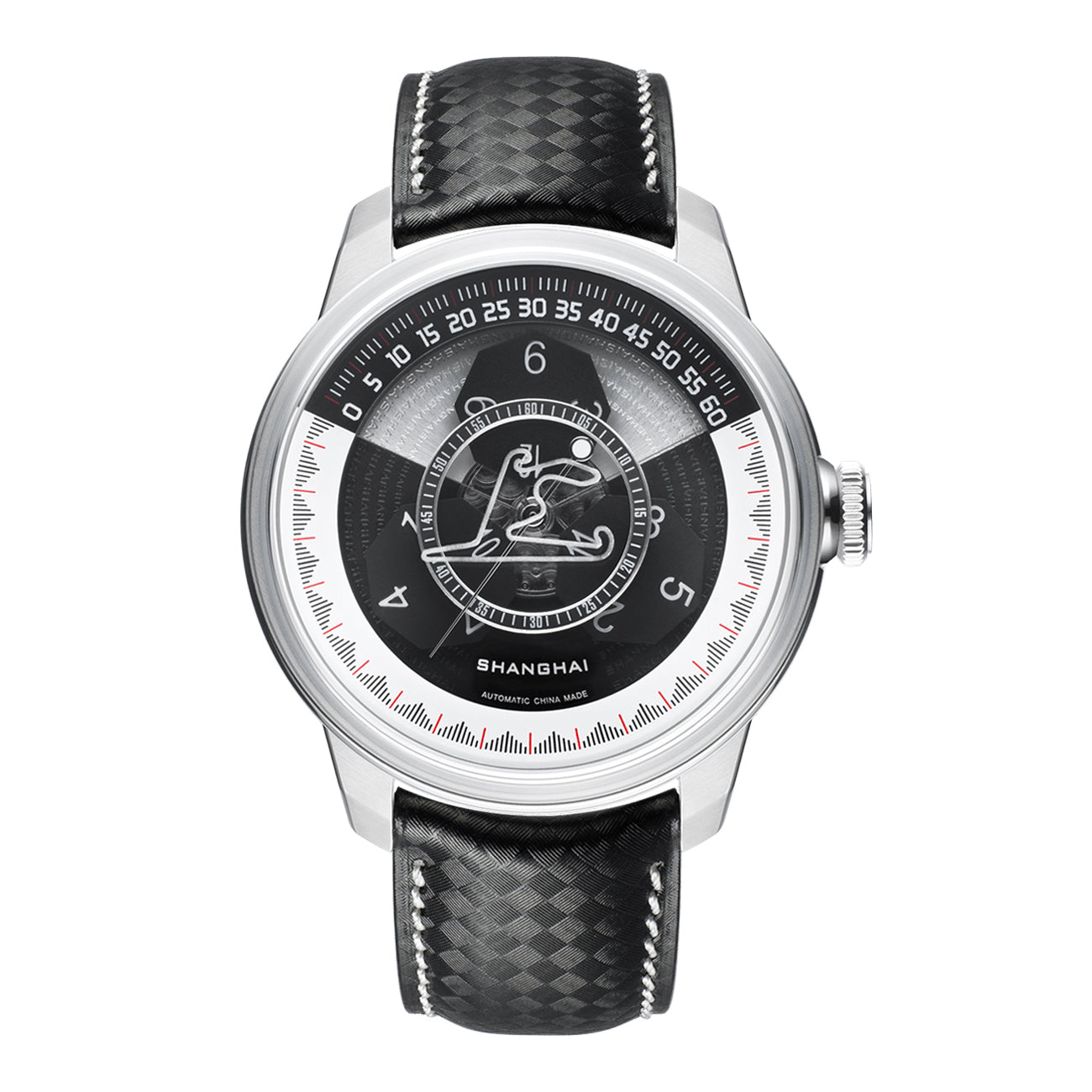

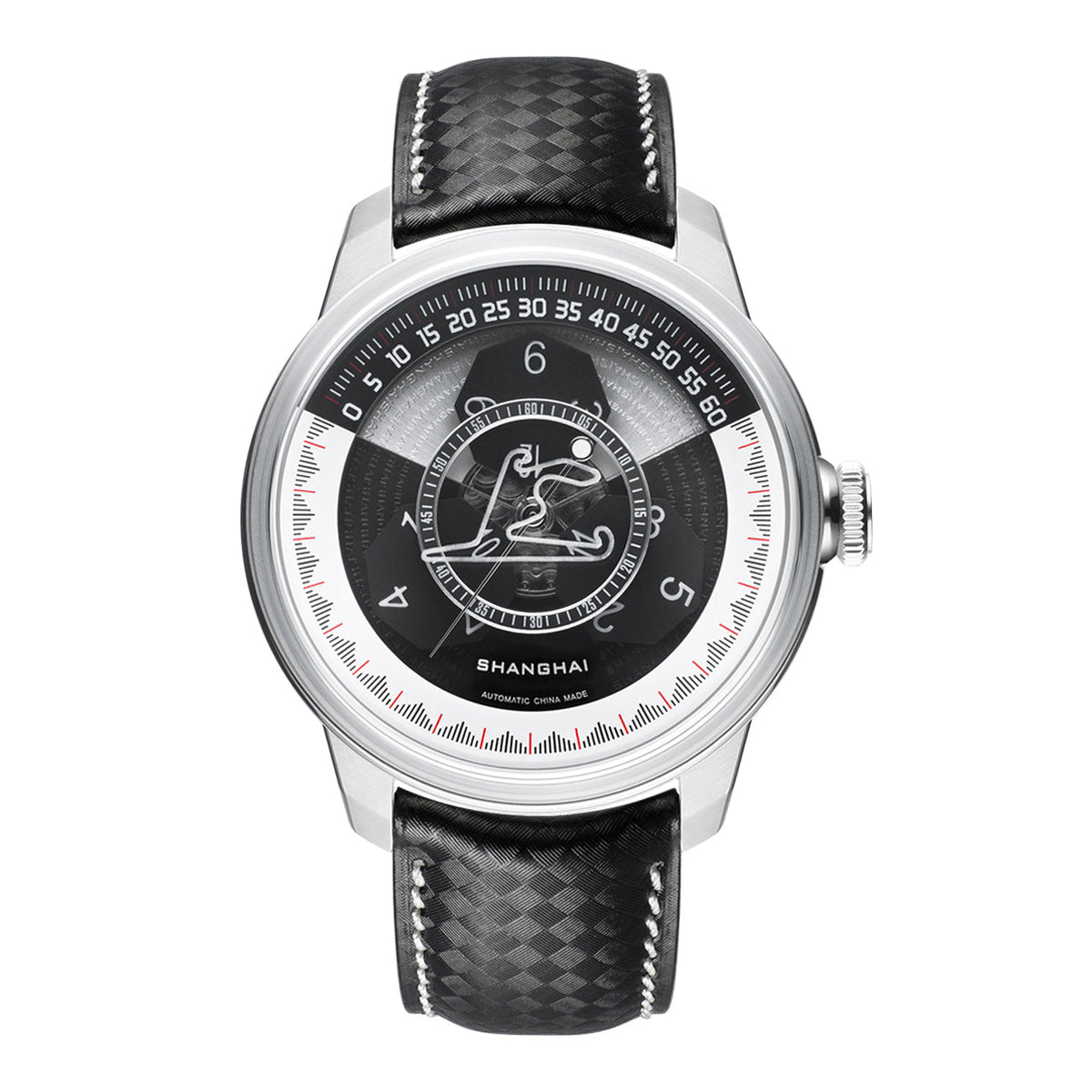

This model of the Shanghai Watch Fab Chrono Series co-brands with Shanghai International Circuit. At the center of the sapphire crystal shows the track layout of the circuit which was inspired from the Chinese character shang (上), the first character in the name of the city Shanghai, meaning "above" or "ascend".

The watch innovates the way of time telling, and the three hour discs rotate while revolving at the same time. The top corner of the hour dials points to the upper scales on the dial, which displays the minutes. The mechanical structure achieves the highly intuitive time-telling process like that on a digital watch, bringing a new experience in using a watch.

Chinese character:
上 - Shang, first character in the name of the city Shanghai, meaning "above" or "ascend"
上海表 X 上海国际赛车场 - Shanghai Watch X Shanghai International Circuit

MOVEMENT
Mechanical, self-winding. China Made. Caliber: Shanghai FWS-F01. Though no date function, it does have a phantom position. Functions: Hour, Minute, Second (Hours and minutes are displayed on the top sector of the dial, the top corner of the rotating hour disc shows the current hour while pointing to the minutes scales, central seconds hand.). Stop-seconds (hacking) to set time precisely. Jewels: 28. Frequency: 28800 vph. Power reserve: Around 40 hours.

CASE
304L Stainless Steel. Diameter: 43.6 mm. Thickness: 15 mm. Lug width: 22 mm. Water resistance: 10 ATM. Luminescence: No lume. Dial: Black, White. Crystal: Sapphire Crystal. Domed. Shape of the Shanghai Circuit also the Chinese character "上" on the underside of the crystal. Case back: Fixed With Screws. Transparent. Crown:Push-Pull. Fluted Cylinder shape. Stainless Steel crown. Signed with the "上海" logo.

STRAP
Black. Polyester fiber in checkered flag pattern on the front and leather back. No quick release: Need tool to remove strap from case. Fit for case lug width: 22 mm. Clasp:Pin Buckle. Stainless Steel clasp.
