Brands List >> Shanghai >> Fab Chrono >>
SHANGHAI CIRCUIT
上赛道
CN ¥15,800 as per web
Brand: Shanghai (上海). Reference: 22FB-F-F01-BLBK. [Version: carbon fiber case, yellow accent color. View other versions→]. Launch date: 2023-Month?-Date?

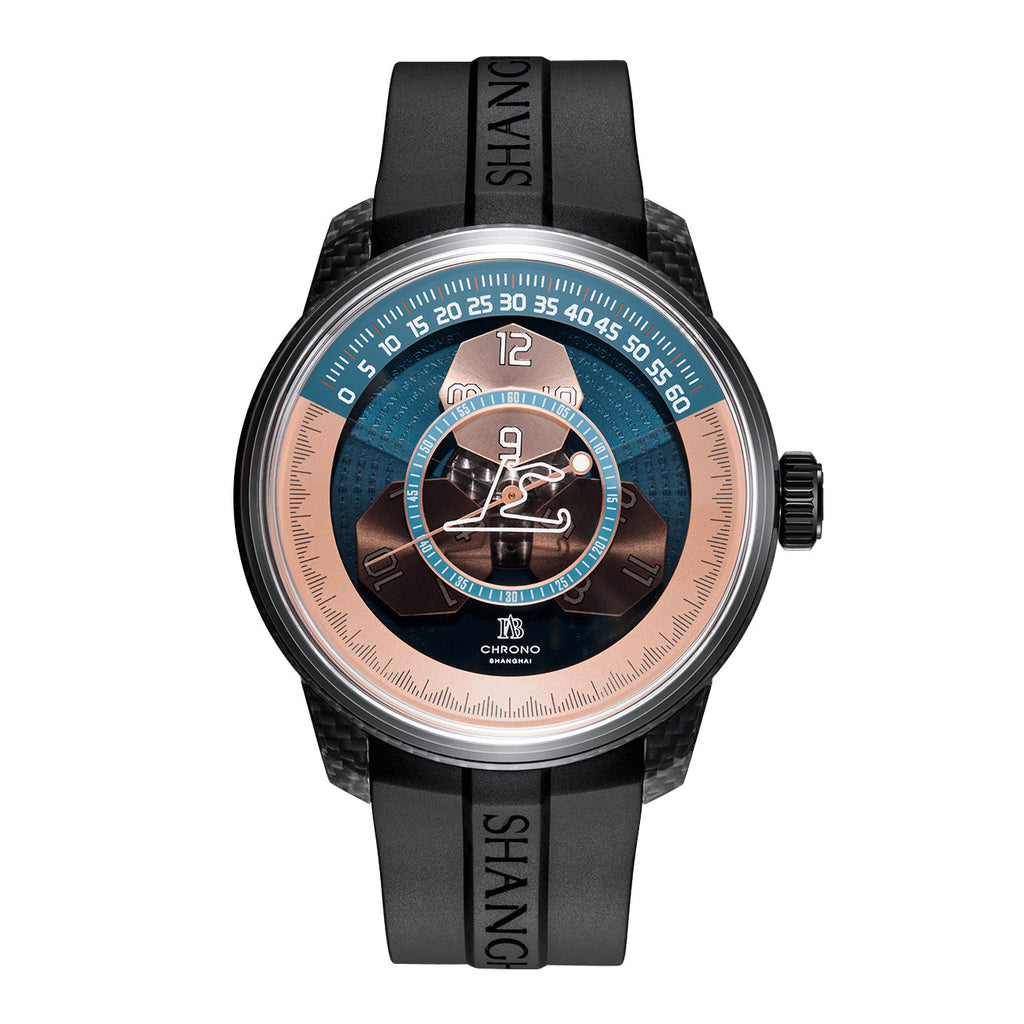

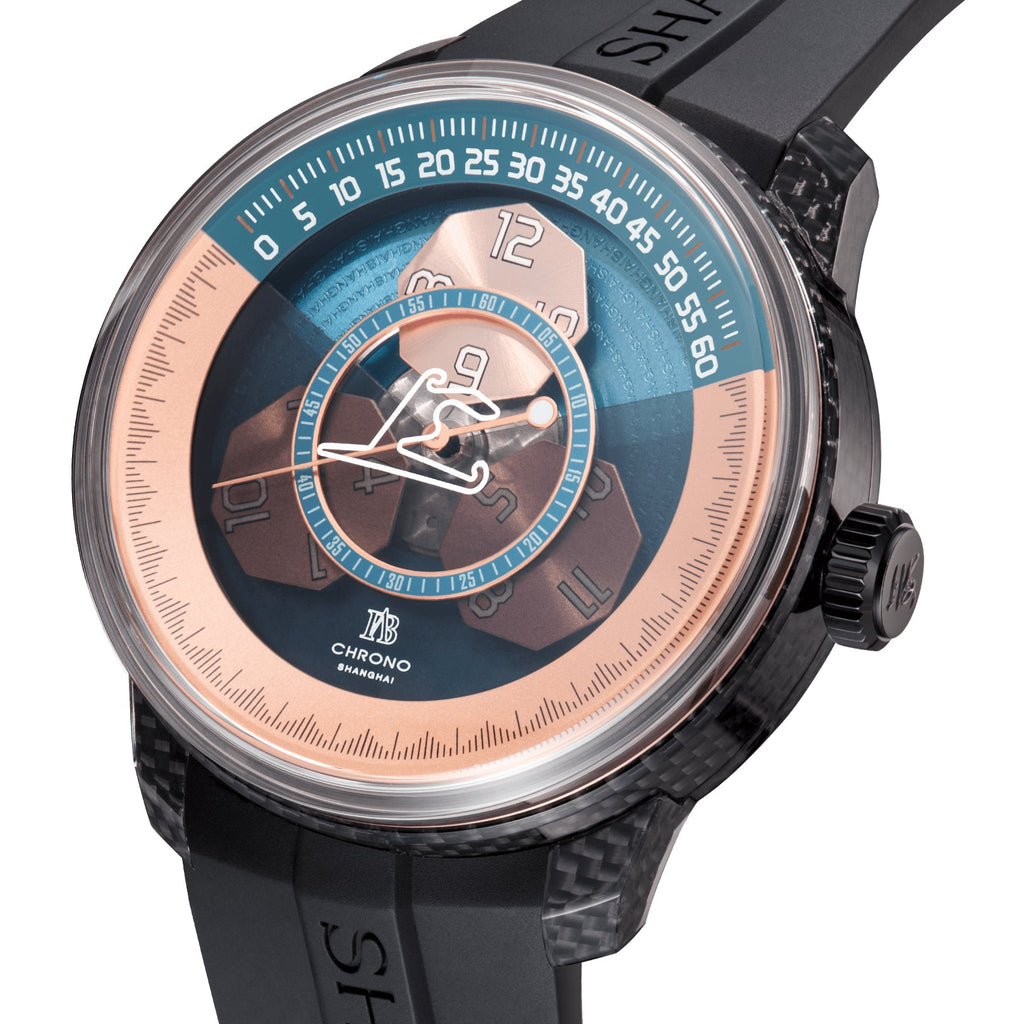

This model of the Shanghai Watch Fab Chrono Series co-brands with Shanghai International Circuit. At the center of the sapphire crystal shows the track layout of the circuit which was inspired from the Chinese character shang (上), the first character in the name of the city Shanghai, meaning "above" or "ascend".
The watch innovates the way of time telling, and the three hour discs rotate while revolving at the same time. The top corner of the hour dials points to the upper scales on the dial, which displays the minutes. The mechanical structure achieves the highly intuitive time-telling process like that on a digital watch, bringing a new experience in using a watch.
Chinese character:
上 - Shang, first character in the name of the city Shanghai, meaning "above" or "ascend"
上海表 X 上海国际赛车场 - Shanghai Watch X Shanghai International Circuit
MOVEMENT
Mechanical, self-winding. China Made. Caliber: Shanghai FWS-F01. Though no date function, it does have a phantom position. Functions: Hour, minute, second (Hours and minutes are displayed on the top sector of the dial, the top corner of the rotating hour disc shows the current hour while pointing to the minutes scales, central seconds hand.). Stop-seconds (hacking) to set time precisely. Jewels: 28. Frequency: 28800 vph. Power reserve: Around 40 hours.
CASE

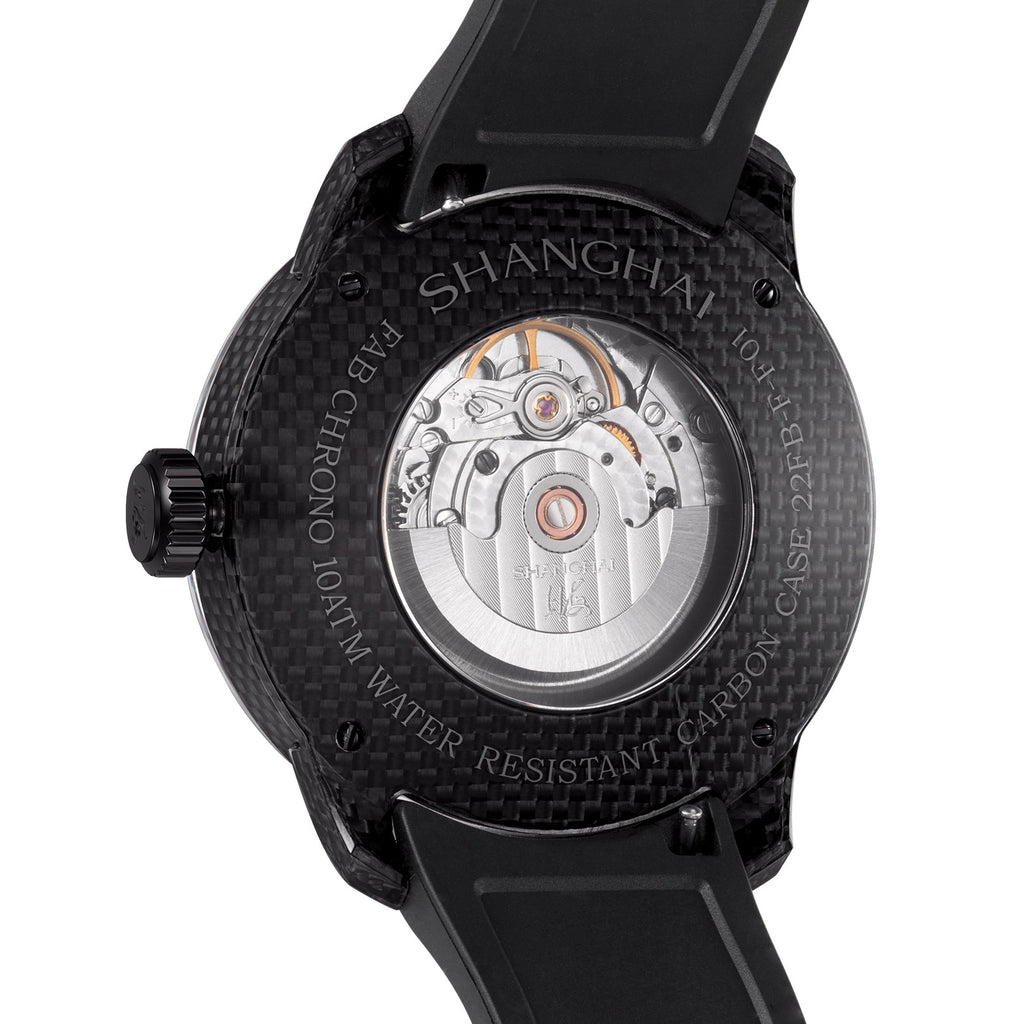

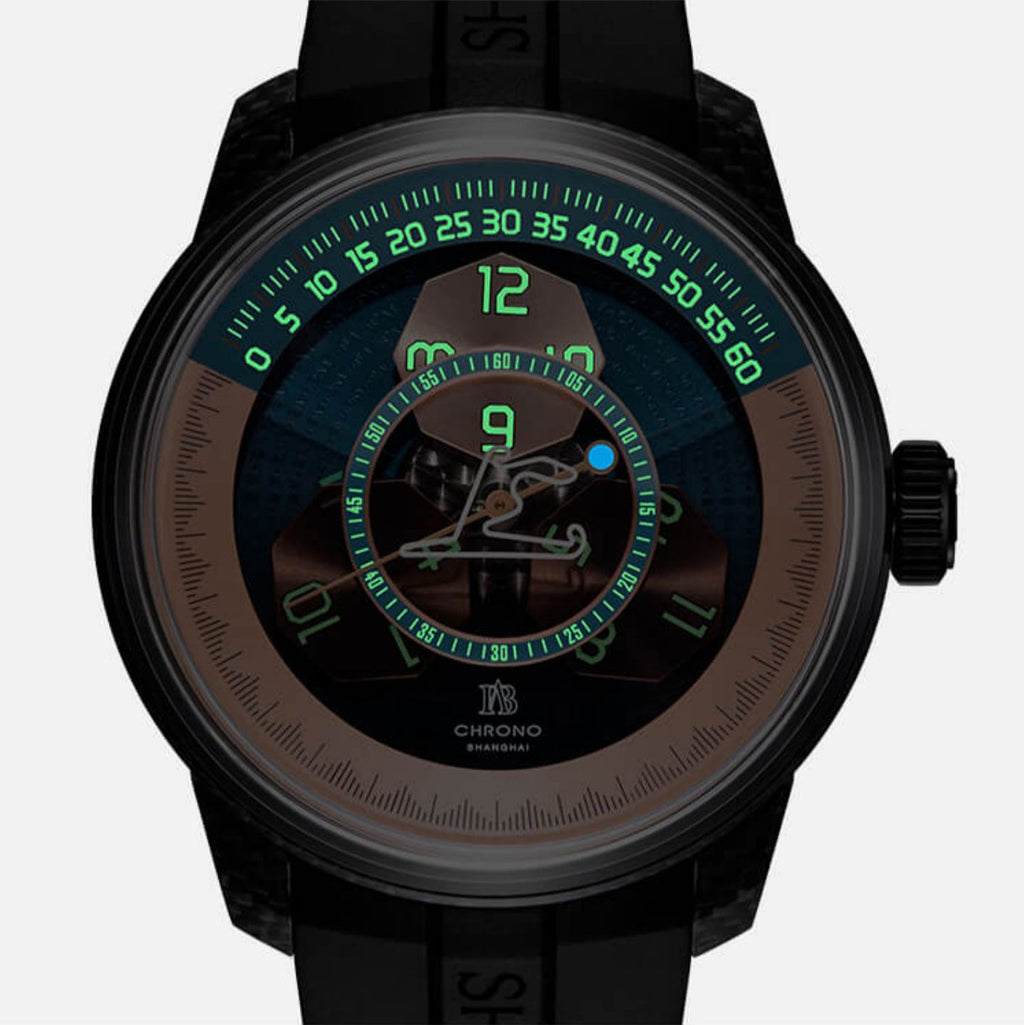

Stainless steel. Covered with carbon fiber-reinforced polymers (CFRP). Diameter: 43.6 mm. Thickness: 15.8 mm. Lug width: 22 mm. Water resistance: 100 meters. Luminescence: Super-LumiNova luminescence. Green lume on indices, blue lume on seconds hand. Dial: Blue, yellow. Crystal: Sapphire crystal. Domed. Has anti-reflective coating. Shape of the Shanghai Circuit also the Chinese character "上" on the underside of the crystal. Case back: Fixed with screws. Transparent. Sapphire crystal case back. Crown: Push-pull. Fluted cylinder shape. Stainless steel crown. Signed with the "上海" logo.
STRAP
Black. Fluorine rubber. Quick release: Remove strap from case without tool. Fit for case lug width: 22 mm. Clasp: Pin buckle.

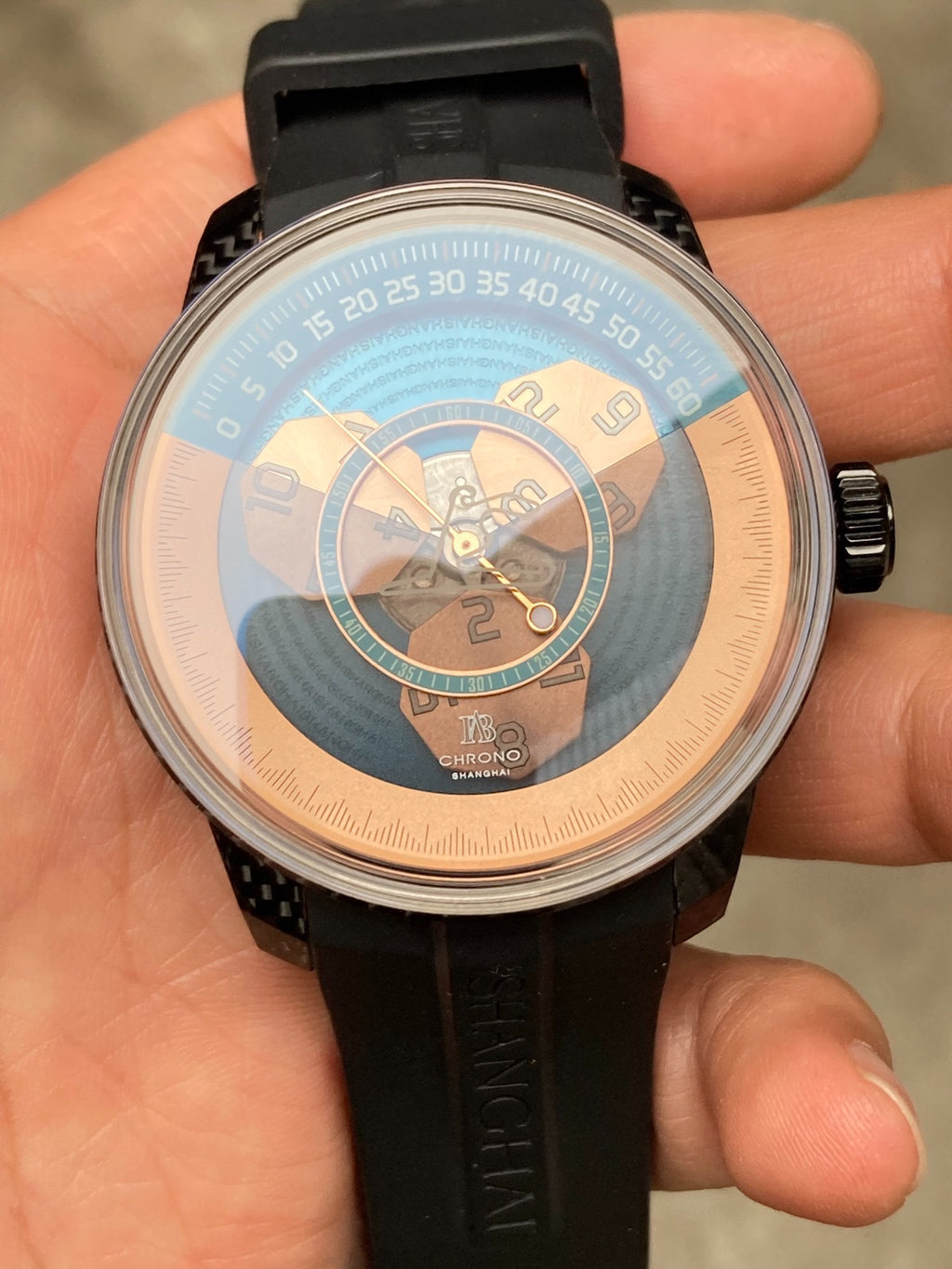

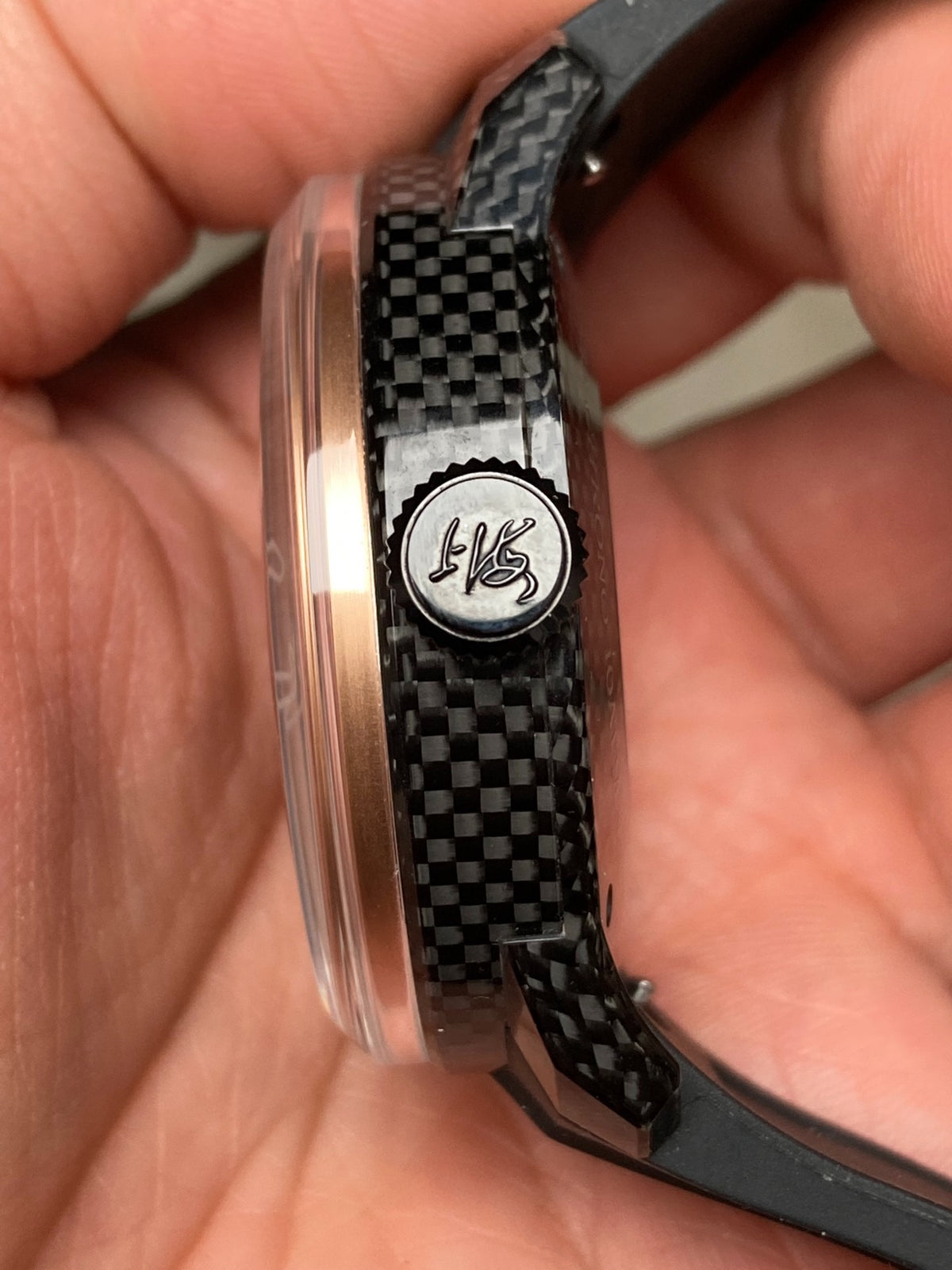

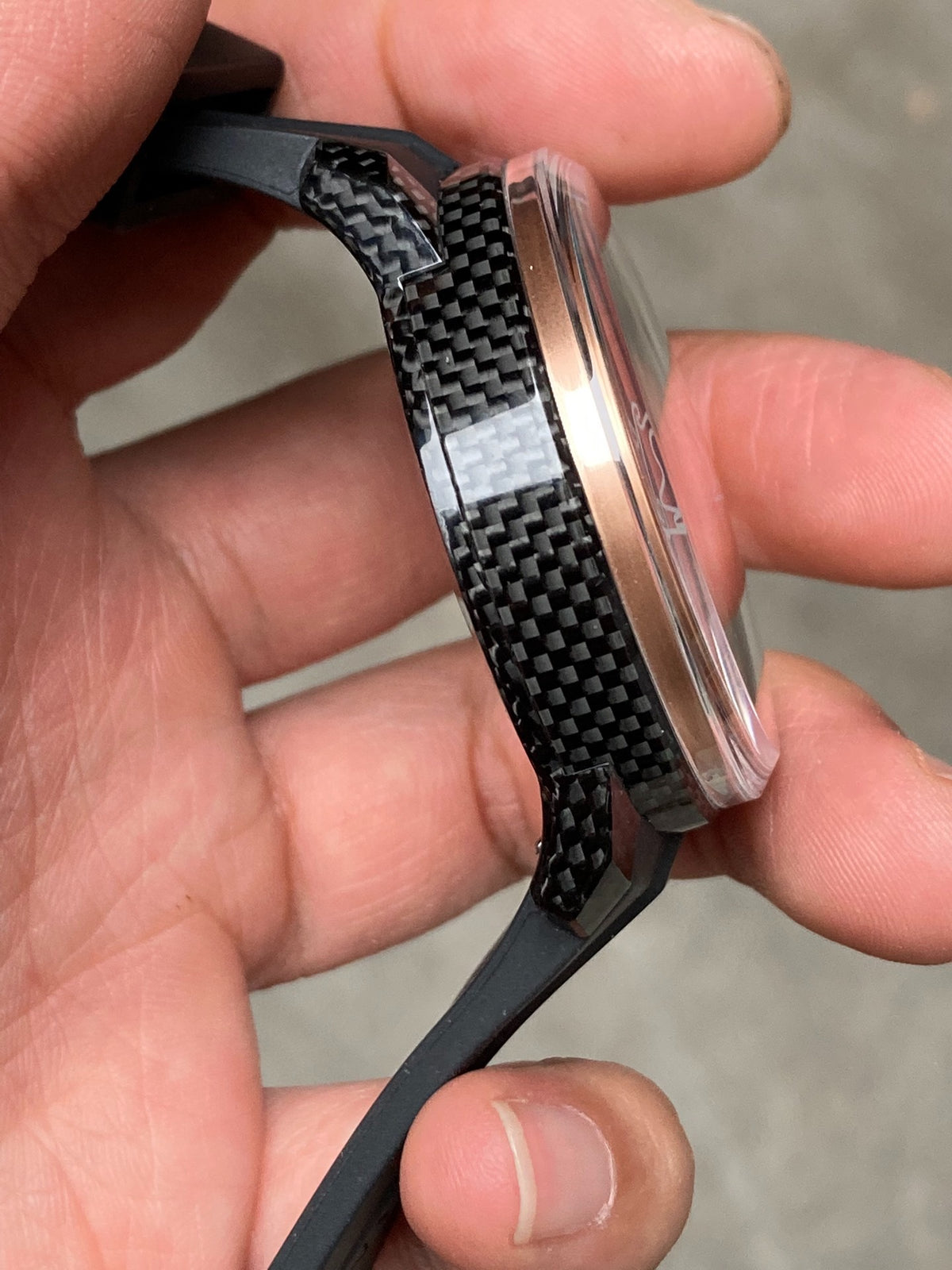

Photo 1, 2, 3, 4 credit to Shanghai Watch Official. Photo 5, 6, 7 credit to 闲鱼@卡西欧发烧屋.
To our knowledge, as of 2025-Mar-28, this watch is available in brand new condition. Search for pre-owned →
Other versions of this watch →
