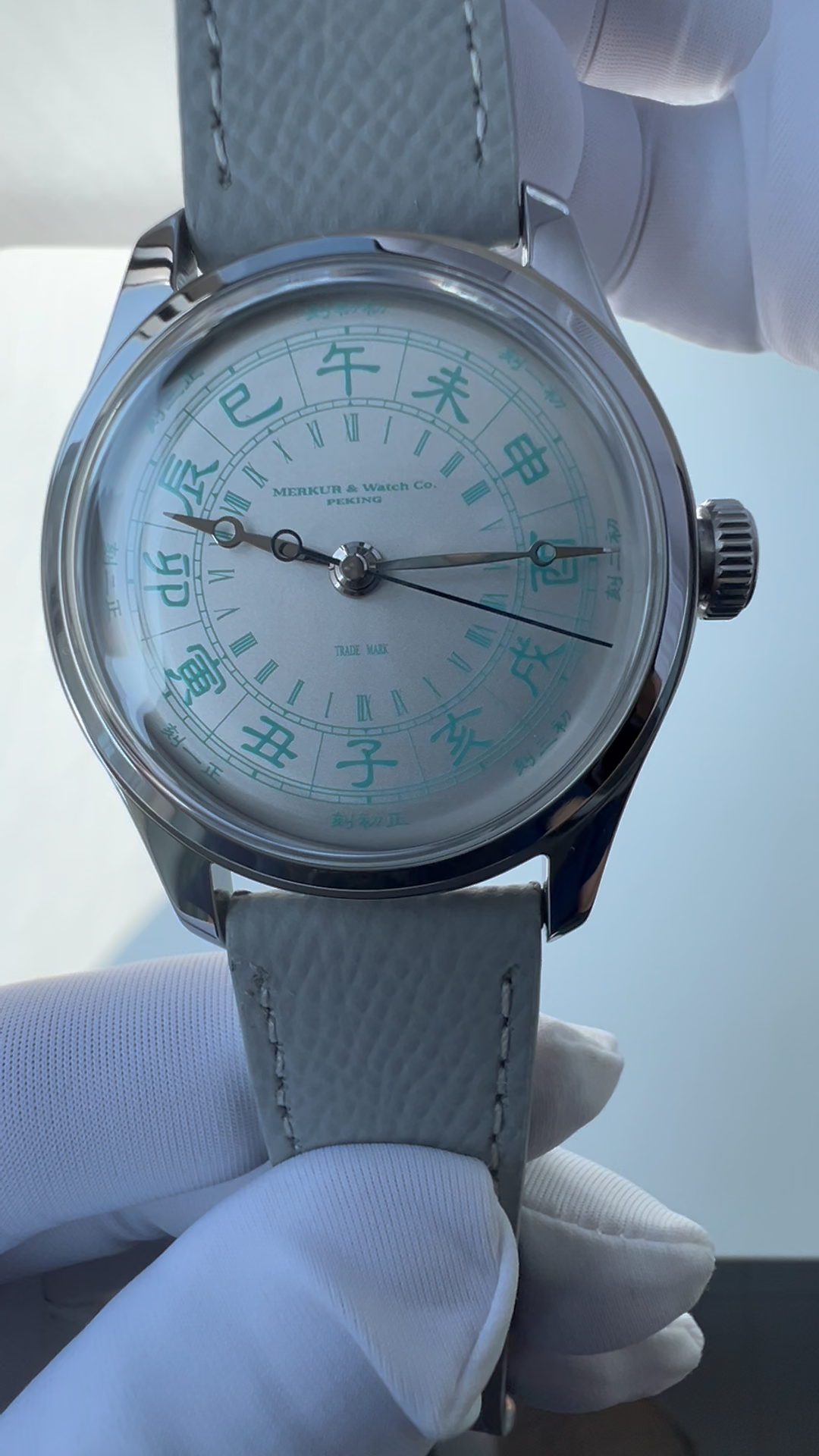

TWELVE SHICHEN · SUNDIAL

十二时辰 · 日晷

Brand: MERKUR (凡致). Reference: E116.13. Launch date: 2026-Month?-Date?

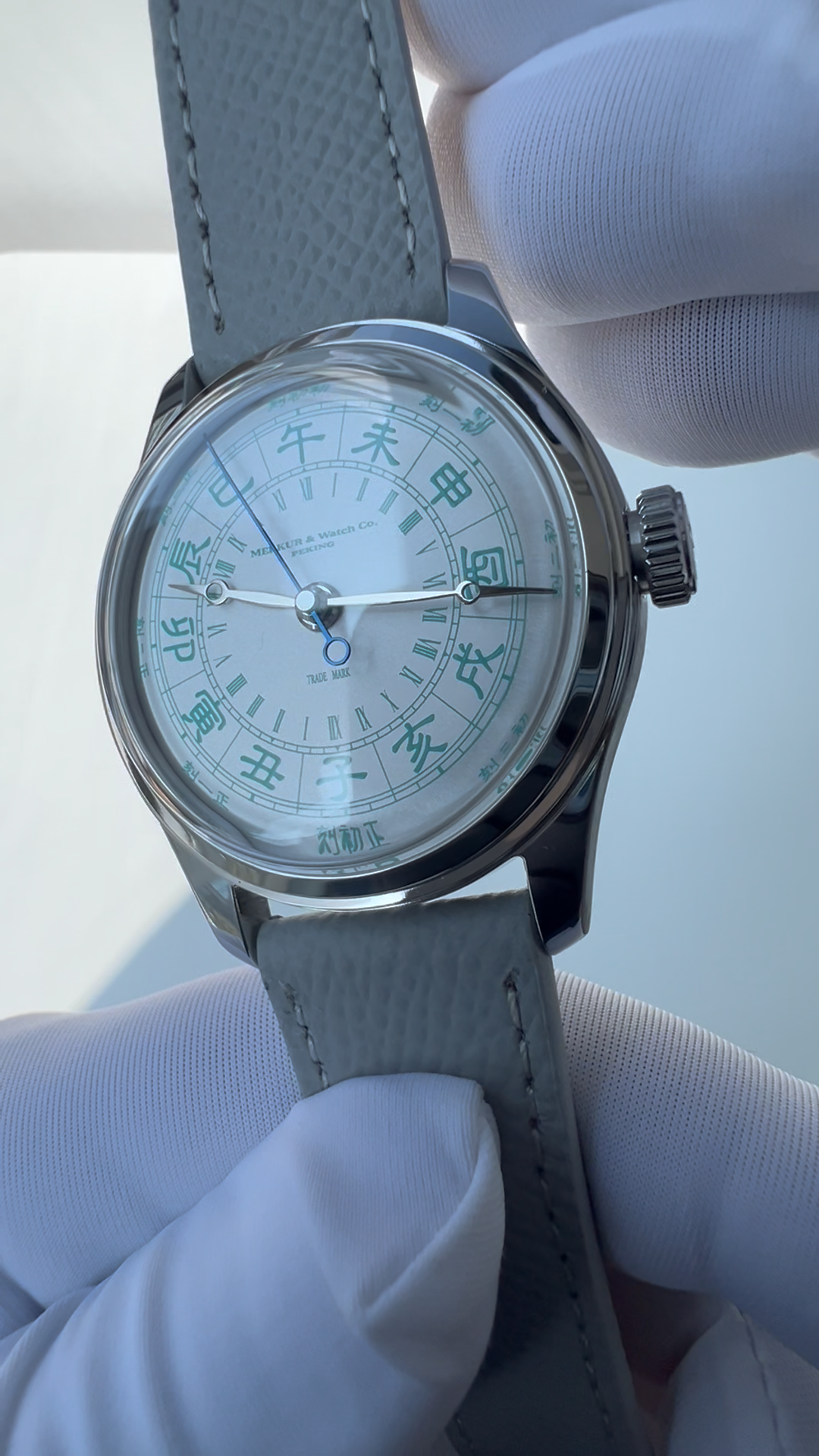

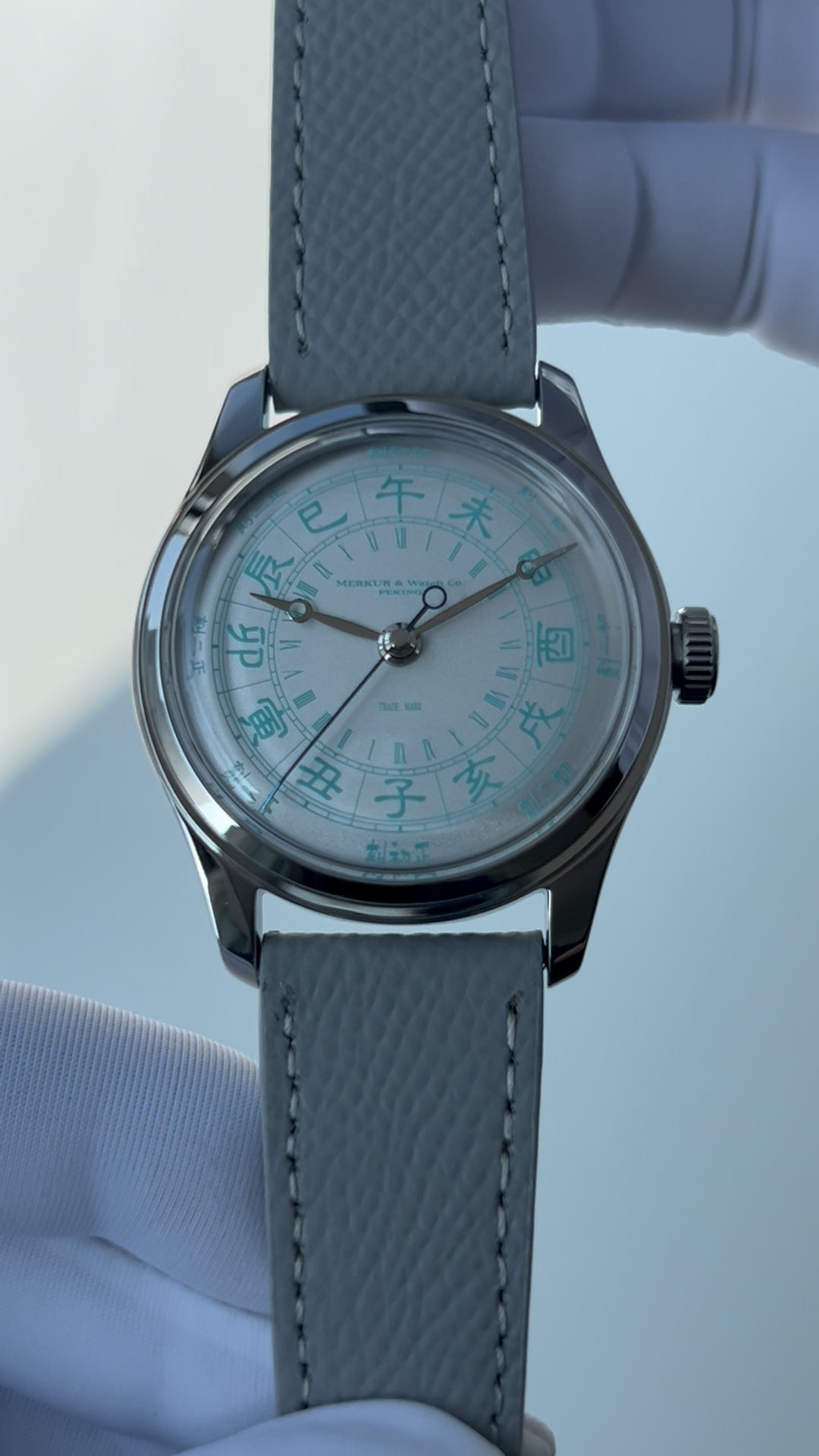

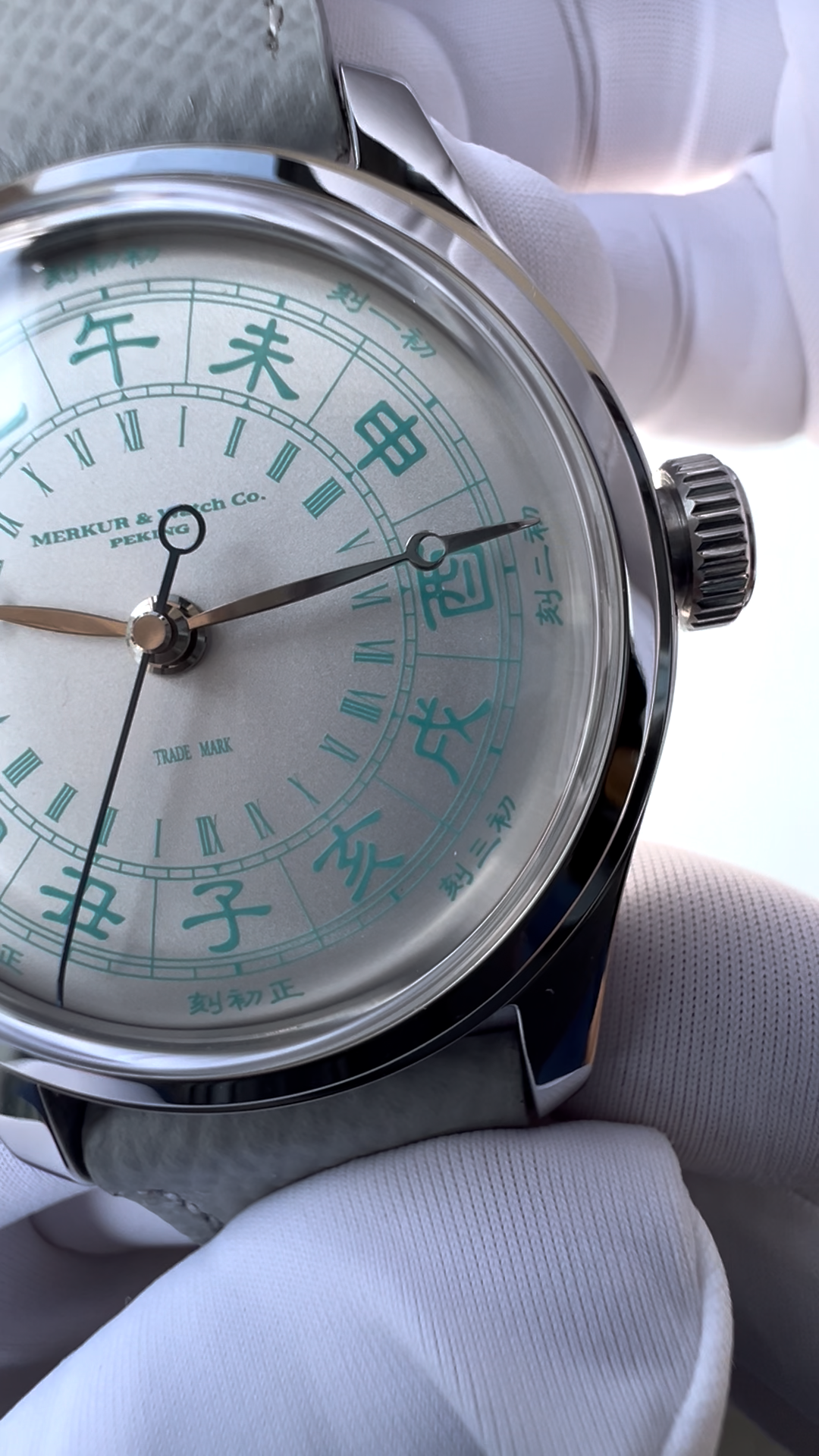

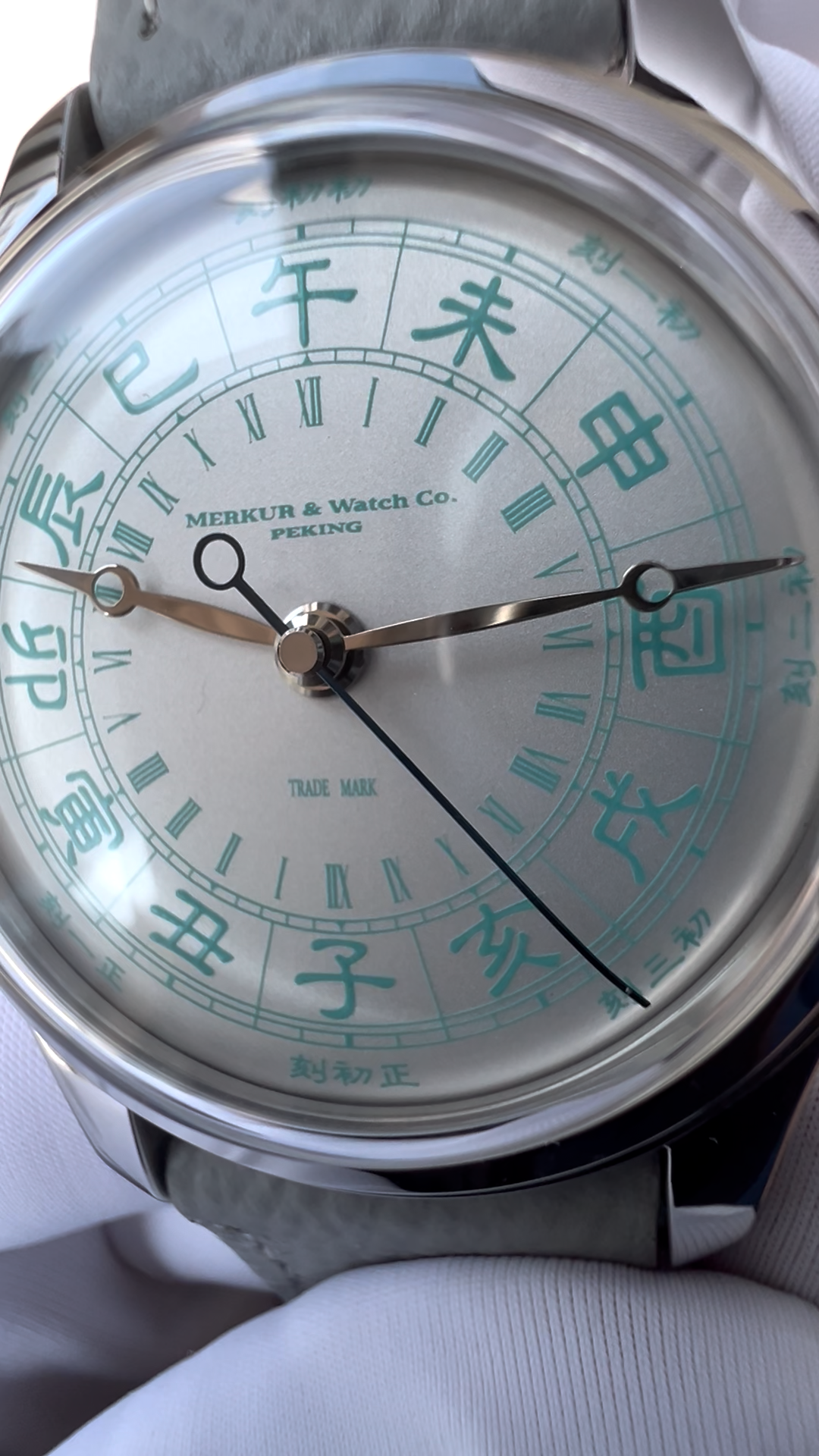

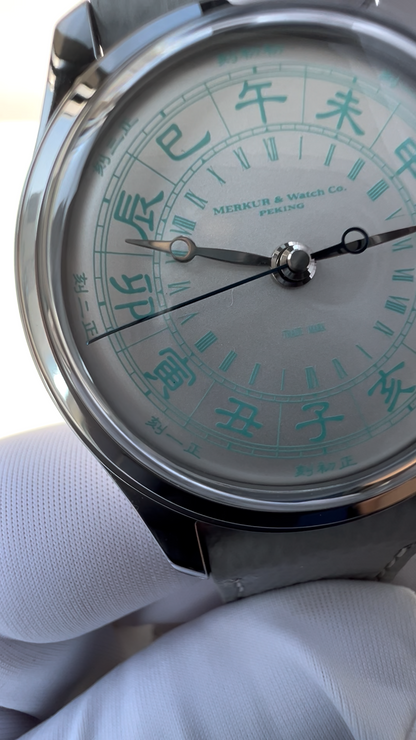

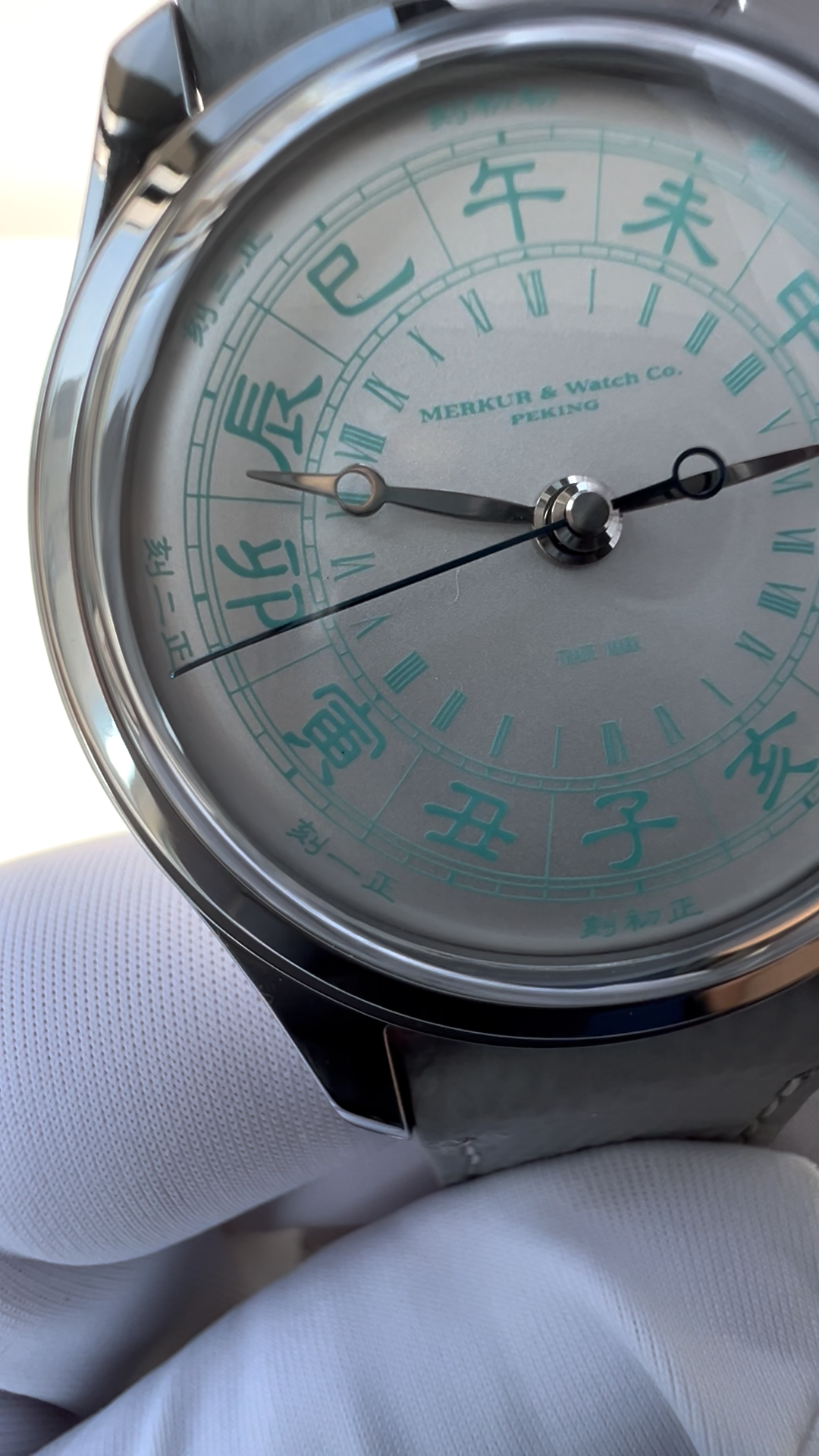

This model uses the traditional Chinese timekeeping system, which divides a day into twelve two-hour periods known as Shichen (时辰). These twelve periods are named 子、丑、寅、卯、辰、巳、午、未、申、酉、戌、亥. The first period, 子 (Zi), runs from 23:00 to 01:00, followed by 丑 (Chou) from 01:00 to 03:00, and so on.

Unlike a conventional 12-hour watch, the hour hand on this watch completes one full rotation every twelve Shichen, or 24 hours.

Chinese character:
Below are the Twelve Shichen:
子 - Zǐ (23:00~1:00)
丑 - Chǒu (1:00~3:00)
寅 - Yín (3:00~5:00)
卯 - Mǎo (5:00~7:00)
辰 - Chén (7:00~9:00)
巳 - Sì (9:00~11:00)
午 - Wǔ (11:00~13:00)
未 - Wèi (13:00~15:00)
申 - Shēn (15:00~17:00)
酉 - Yǒu (17:00~19:00)
戌 - Xū (19:00~21:00)
亥 - Hài (21:00~23:00)

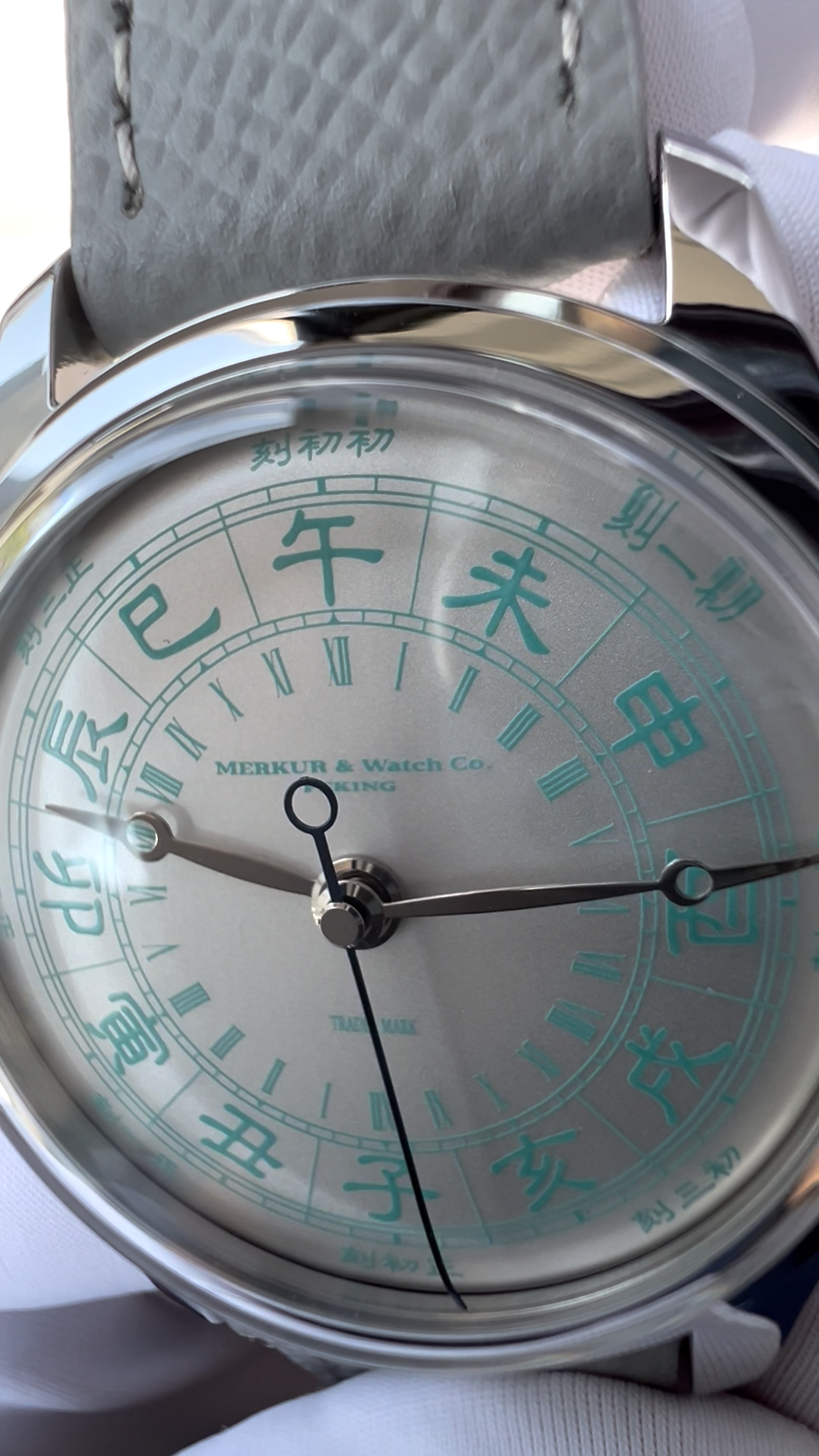

Below are the eight divisions within each Shichen, each division covers one Ke or a quarter (15 minutes)
初初刻 - Initial Hour, 0 Ke
初一刻 - Initial Hour, 1 Ke
初二刻 - Initial Hour, 2 Ke
初三刻 - Initial Hour, 3 Ke
正初刻 - Central Hour, 0 Ke
正一刻 - Central Hour, 1 Ke
正二刻 - Central Hour, 2 Ke
正三刻 - Central Hour, 3 Ke

MOVEMENT
Mechanical, self-winding. China Made. Caliber: Merkur M01D. Functions: Hour, Minute, Second, Twelve Shichen (Central hour, minute and seconds hands. The hour hand completes one full rotation every 24 hours.). Stop-seconds (hacking) to set time precisely. Frequency: 21600 vph.

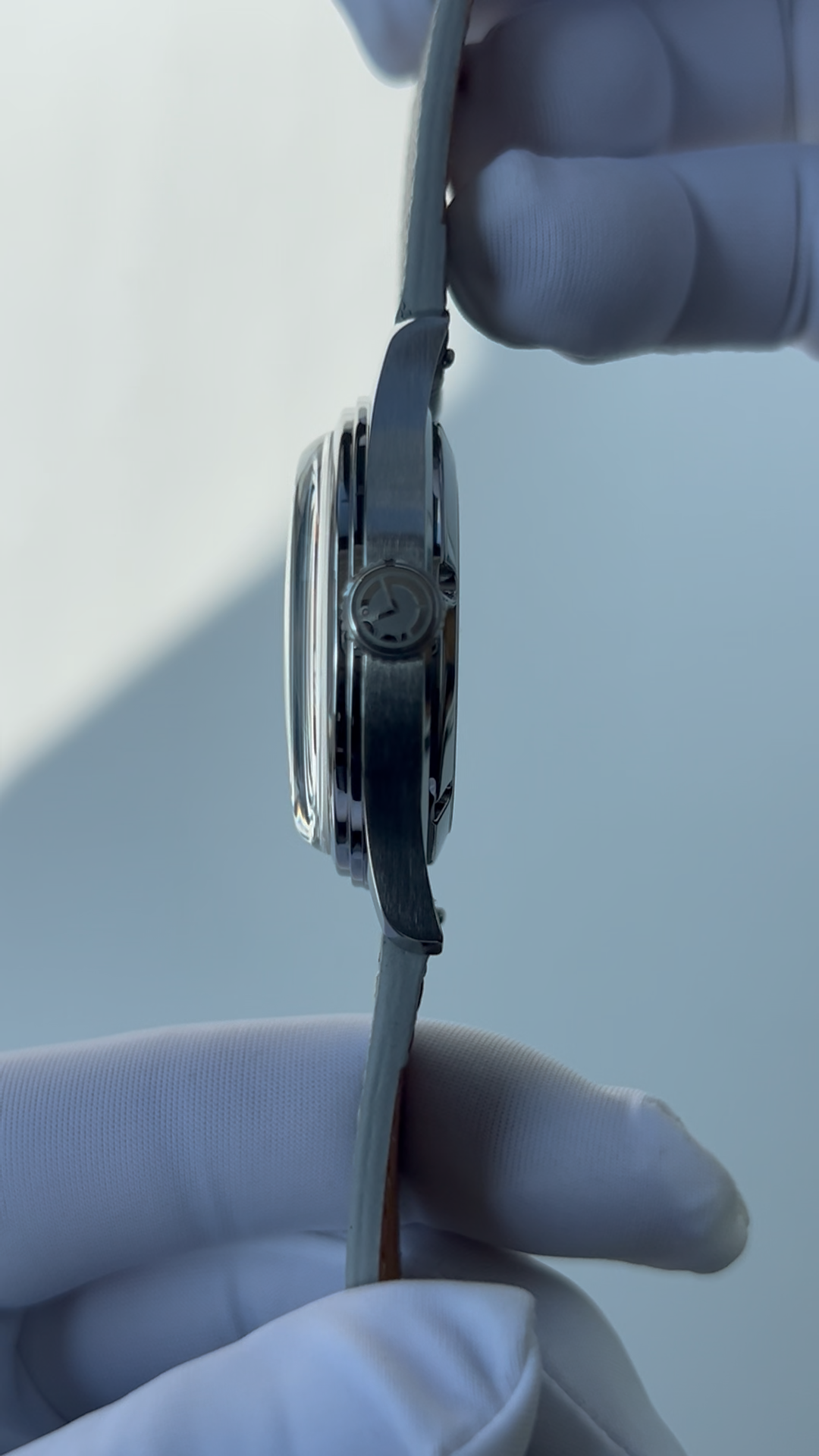

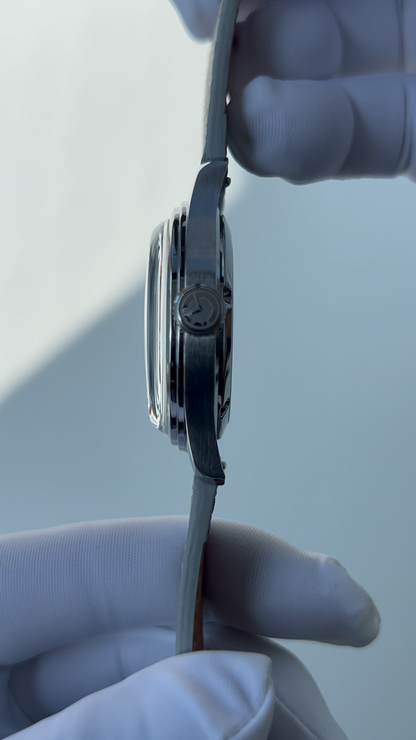

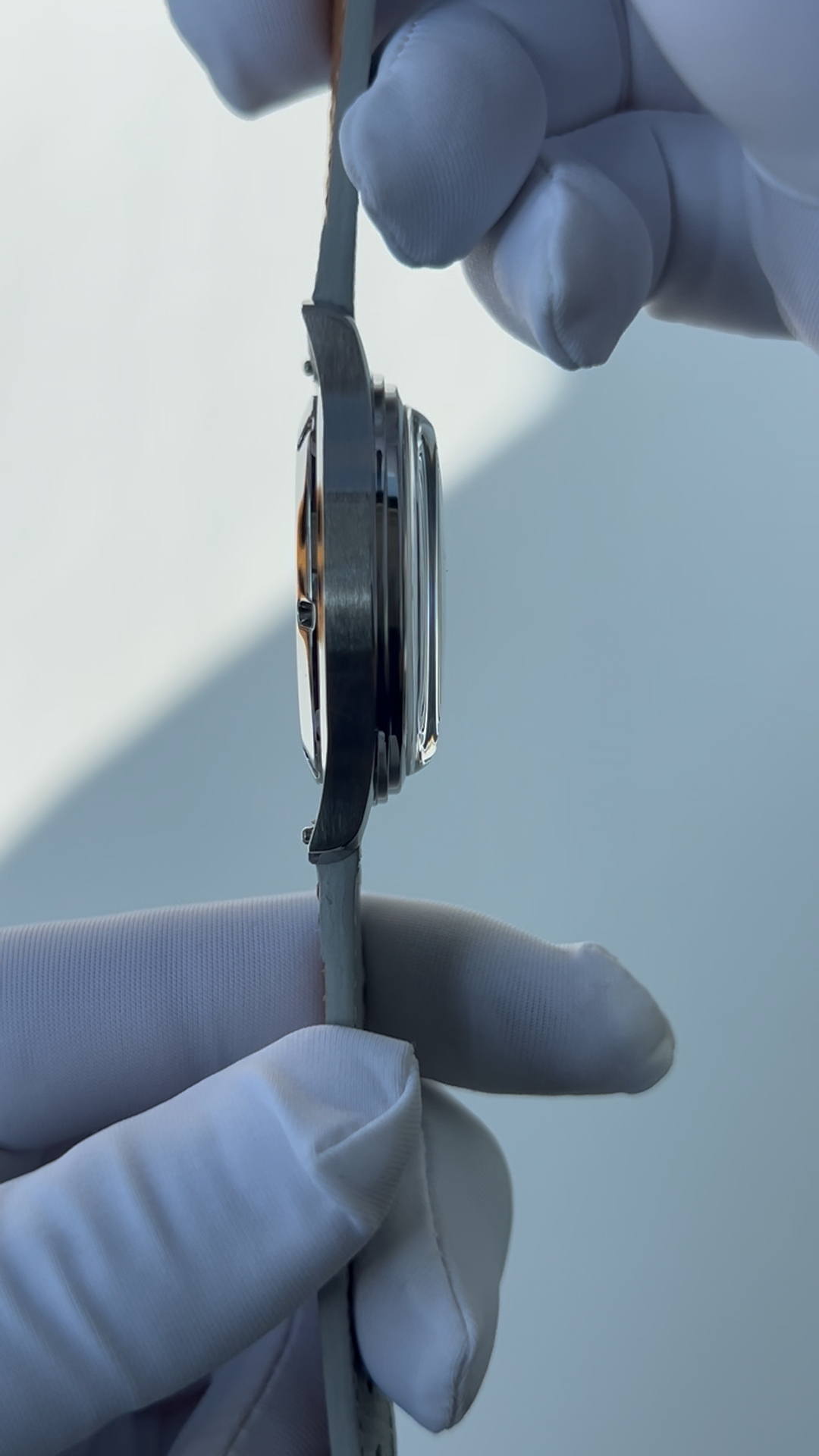

CASE

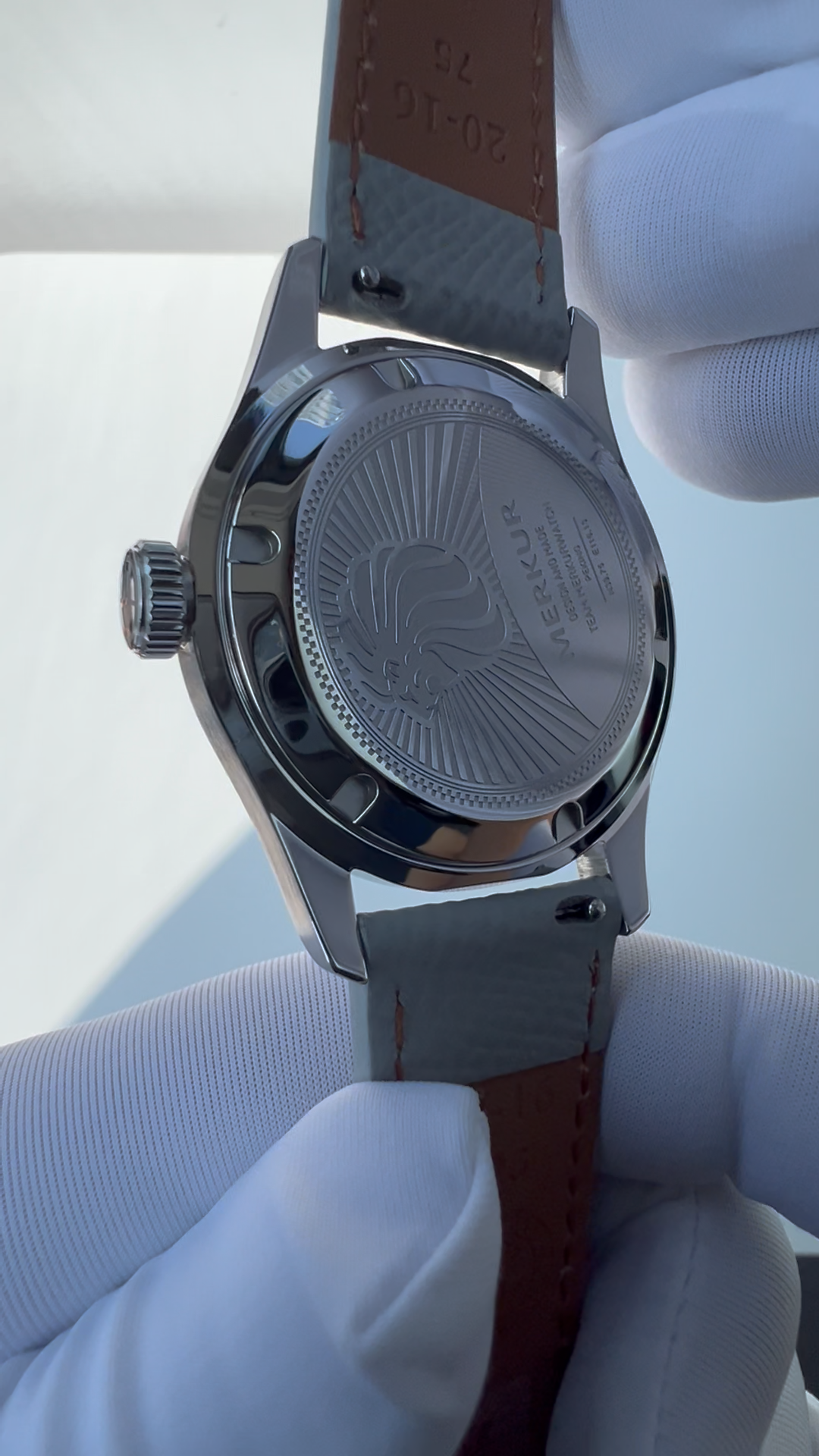

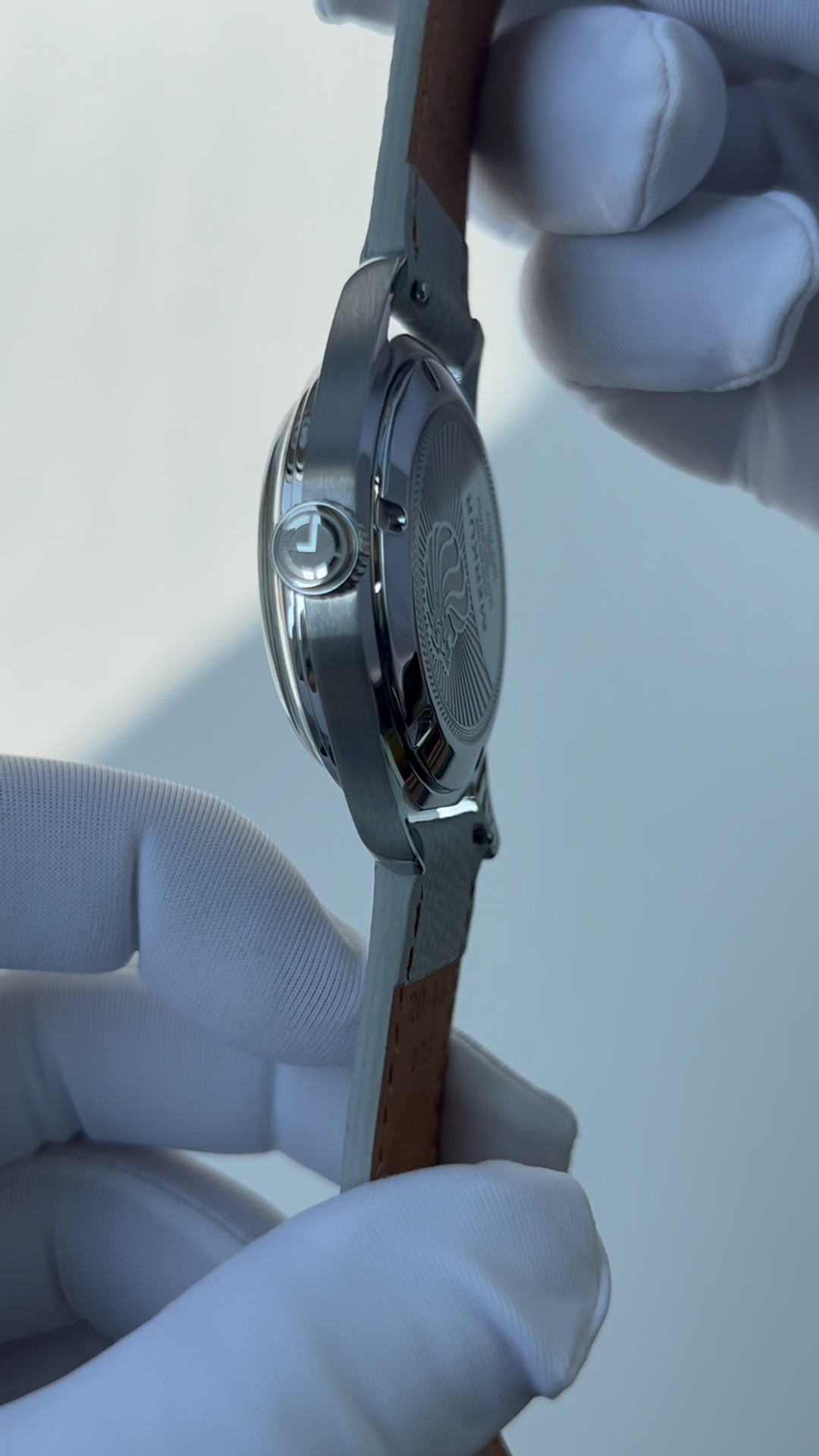

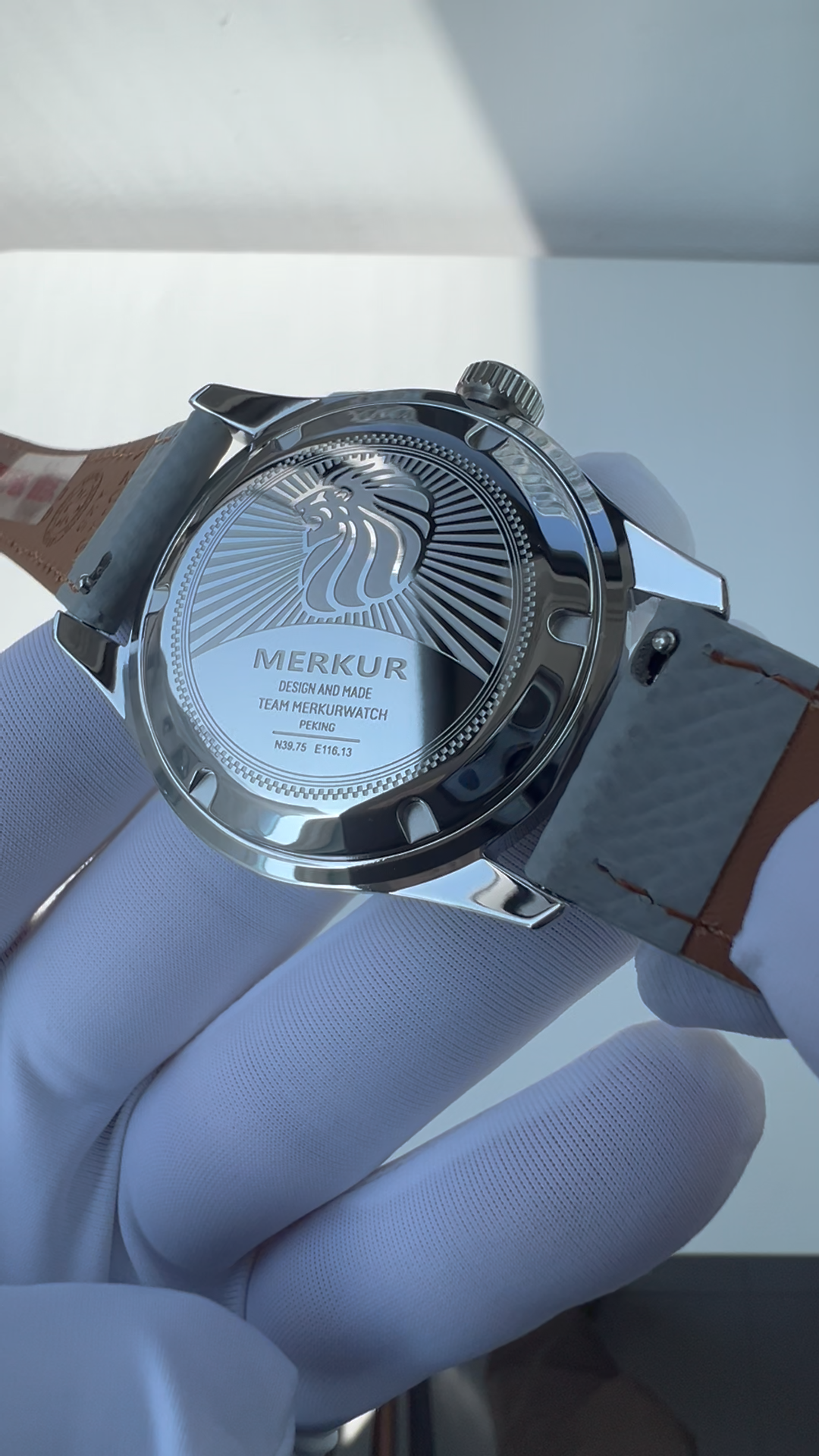

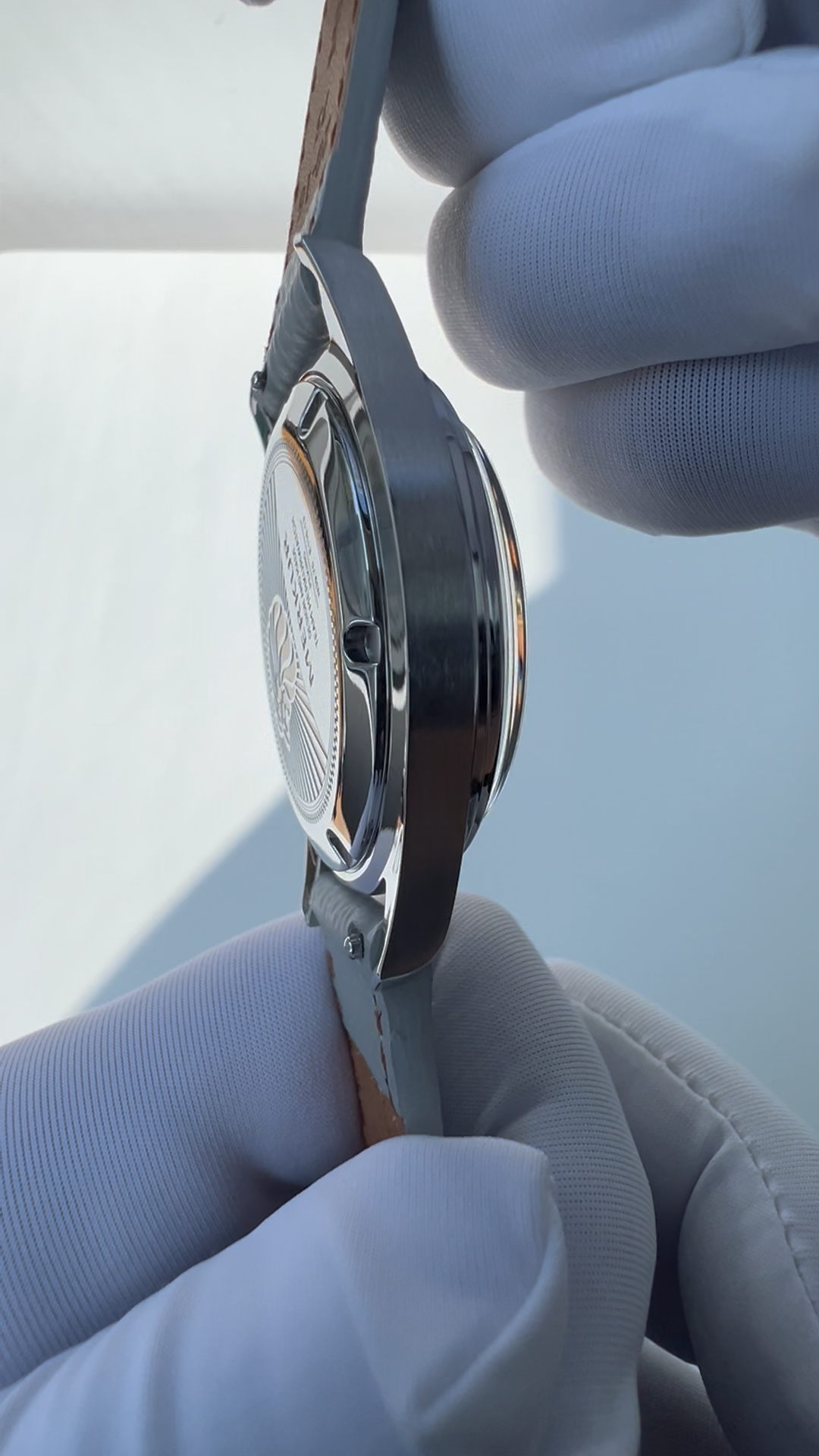

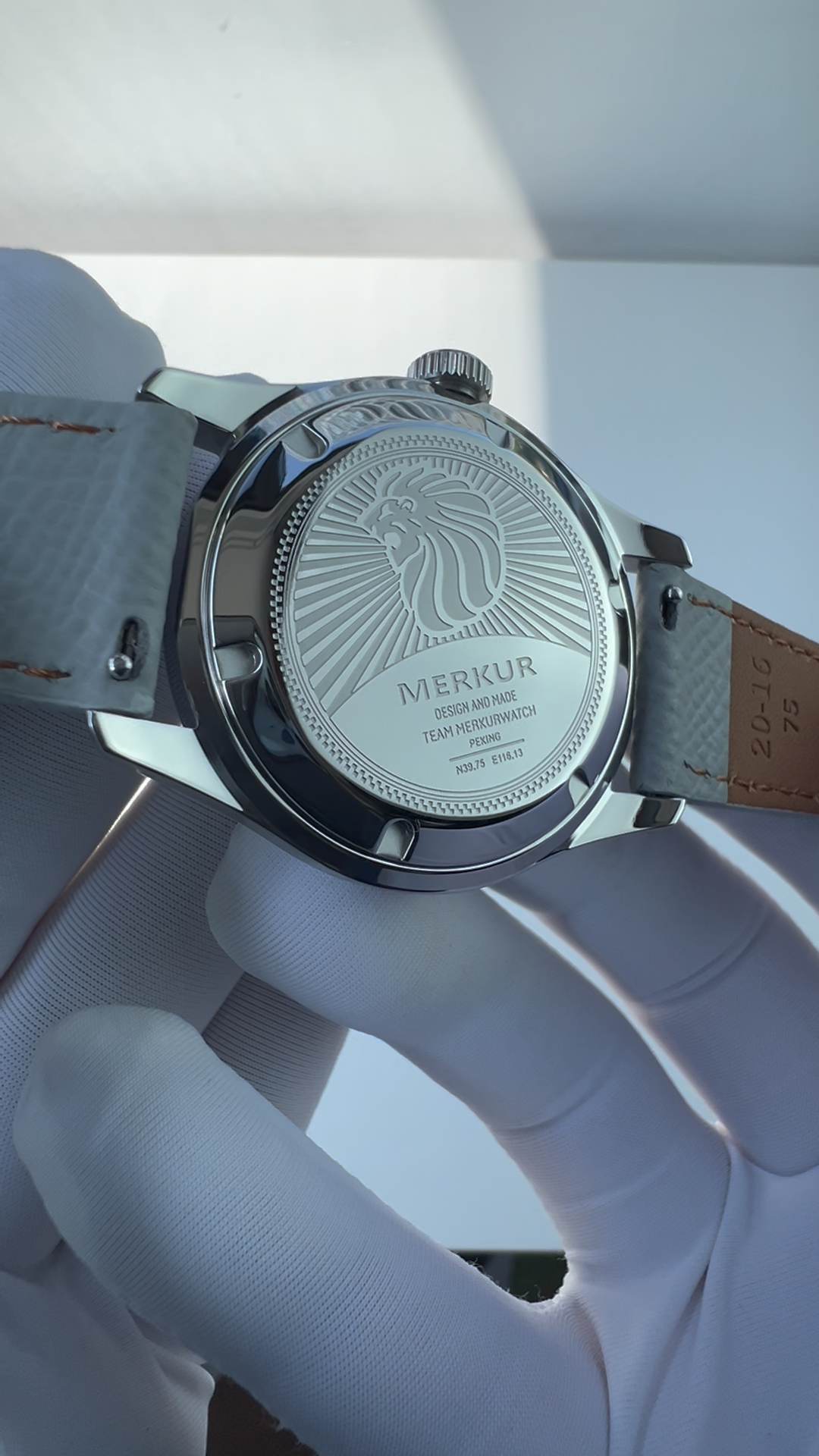

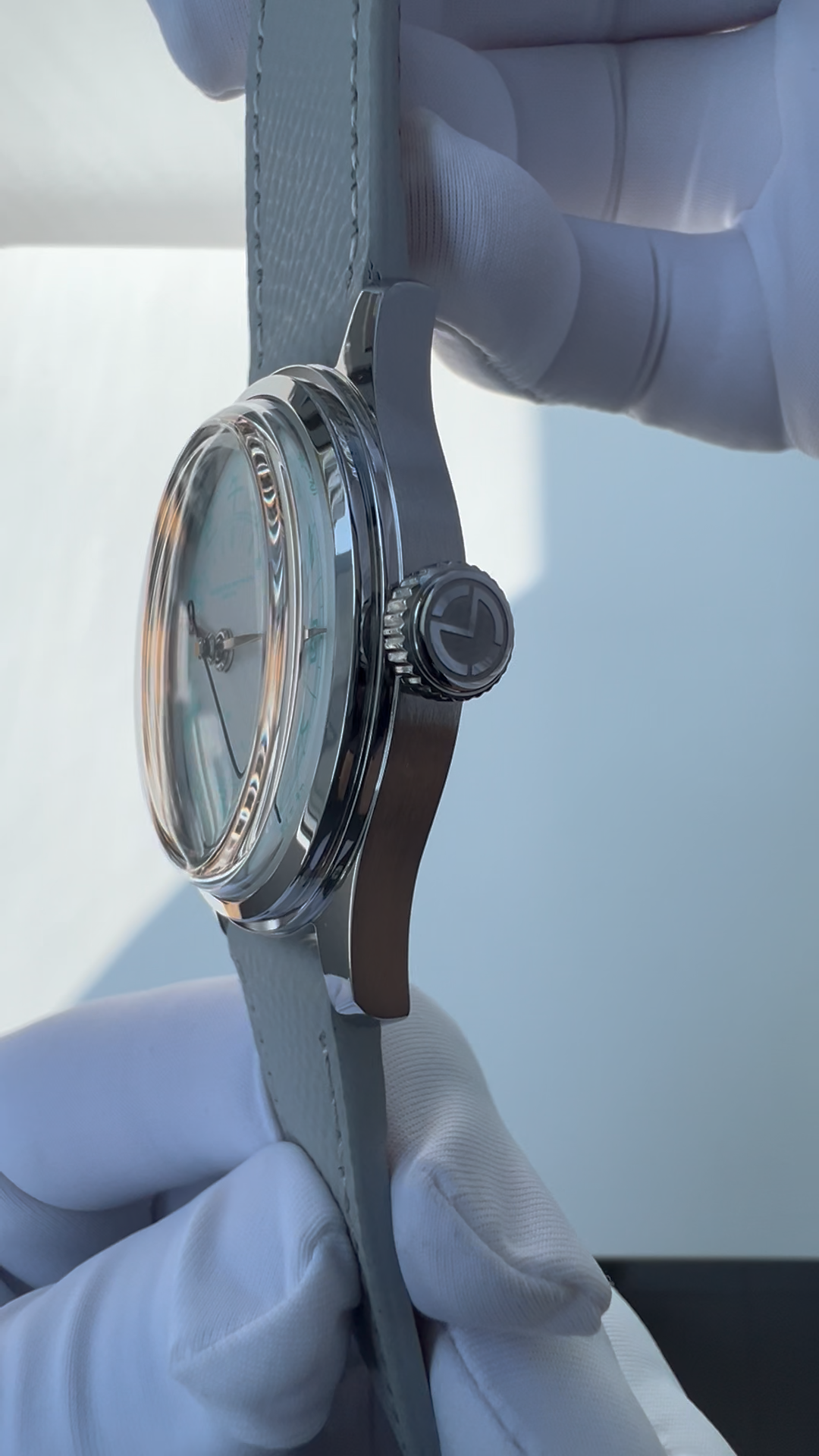

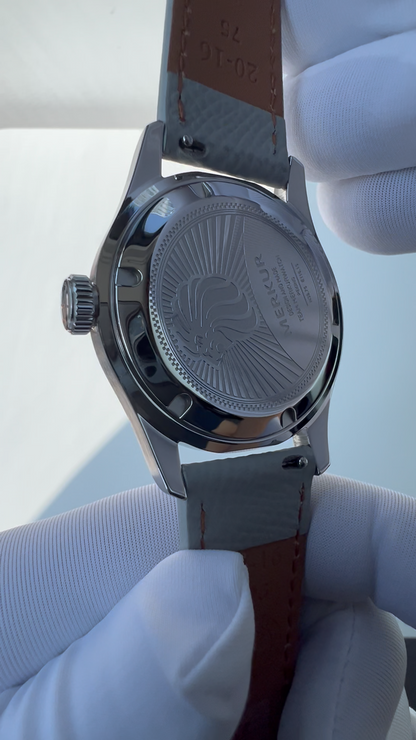

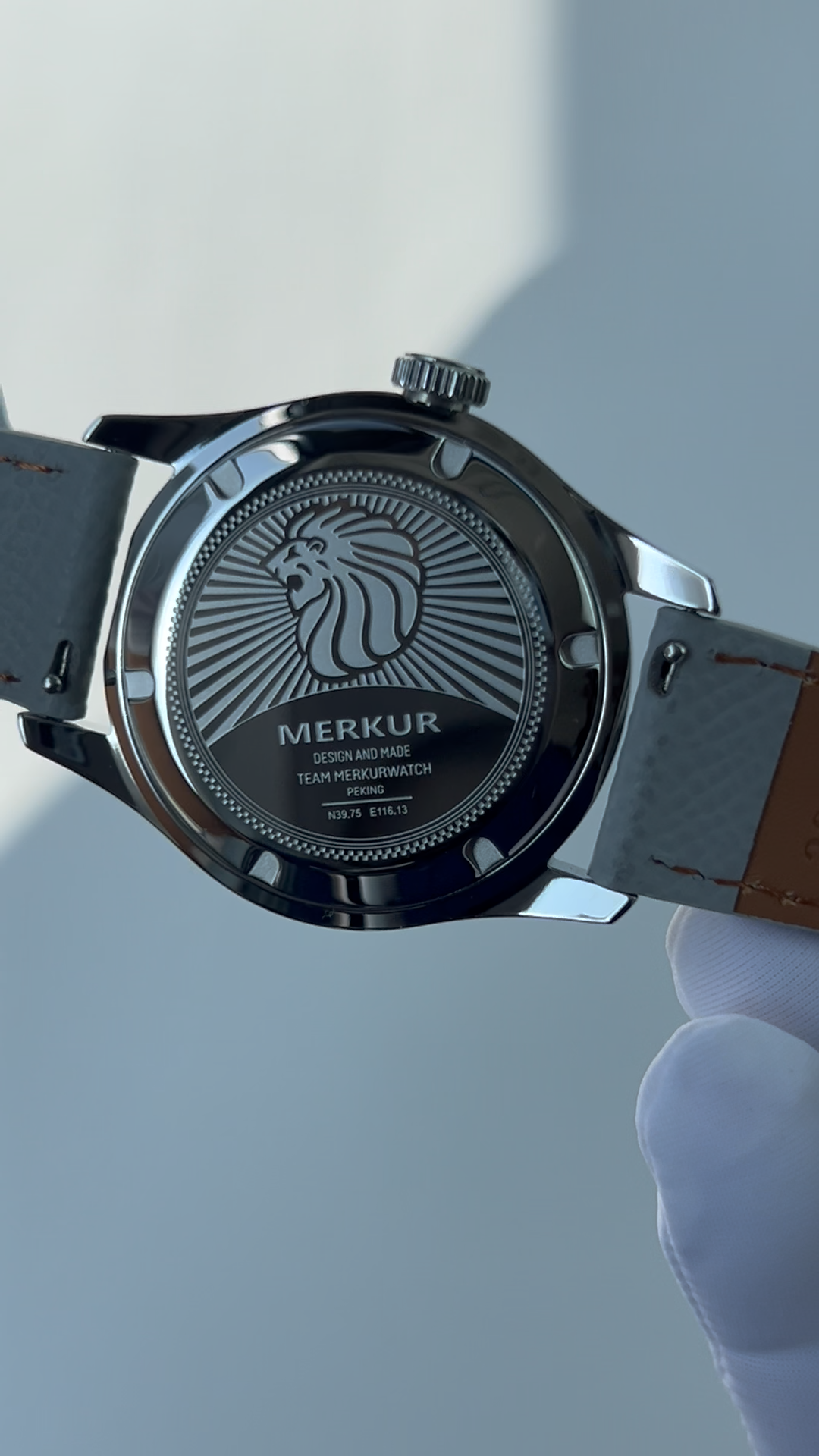

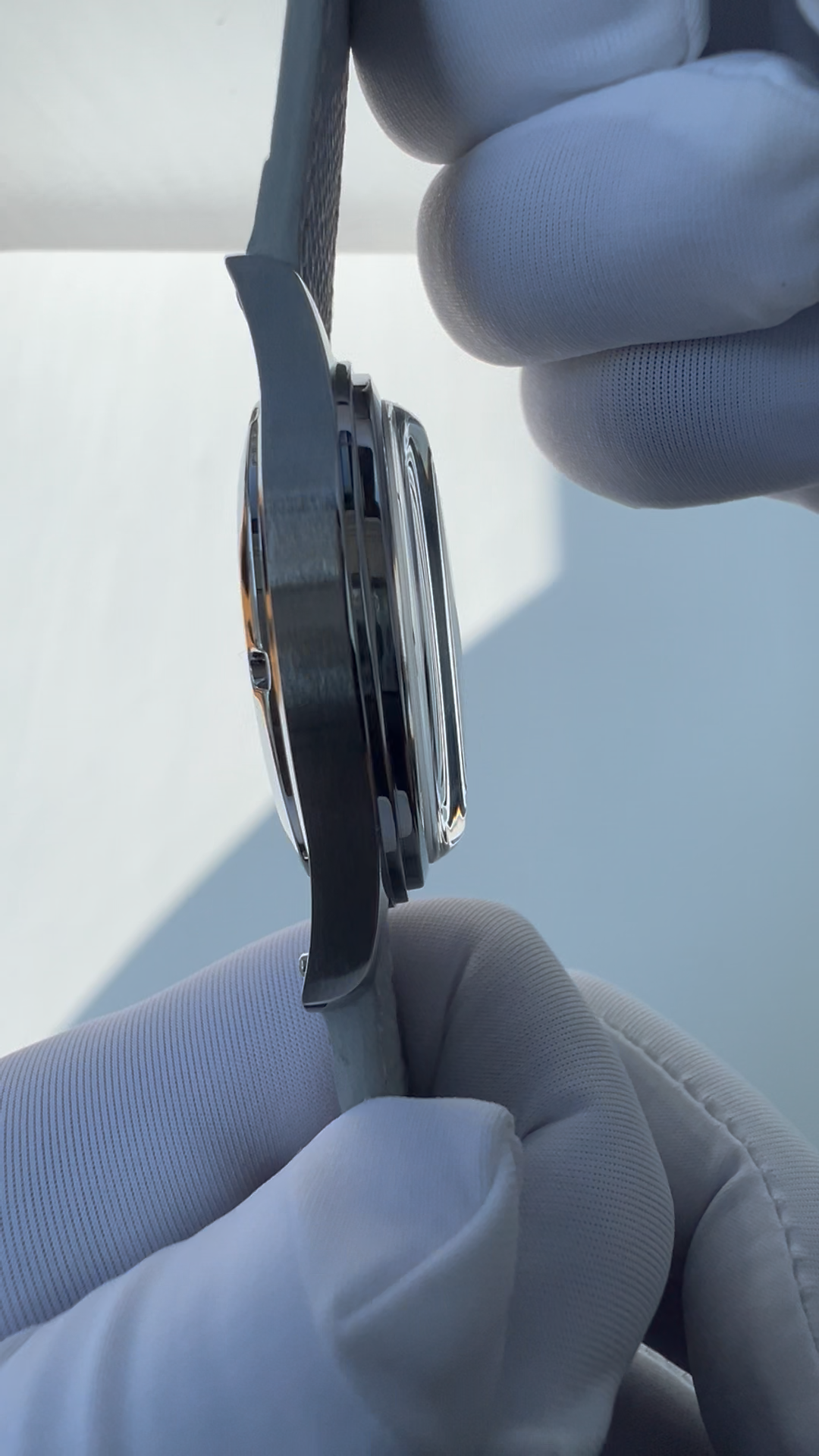

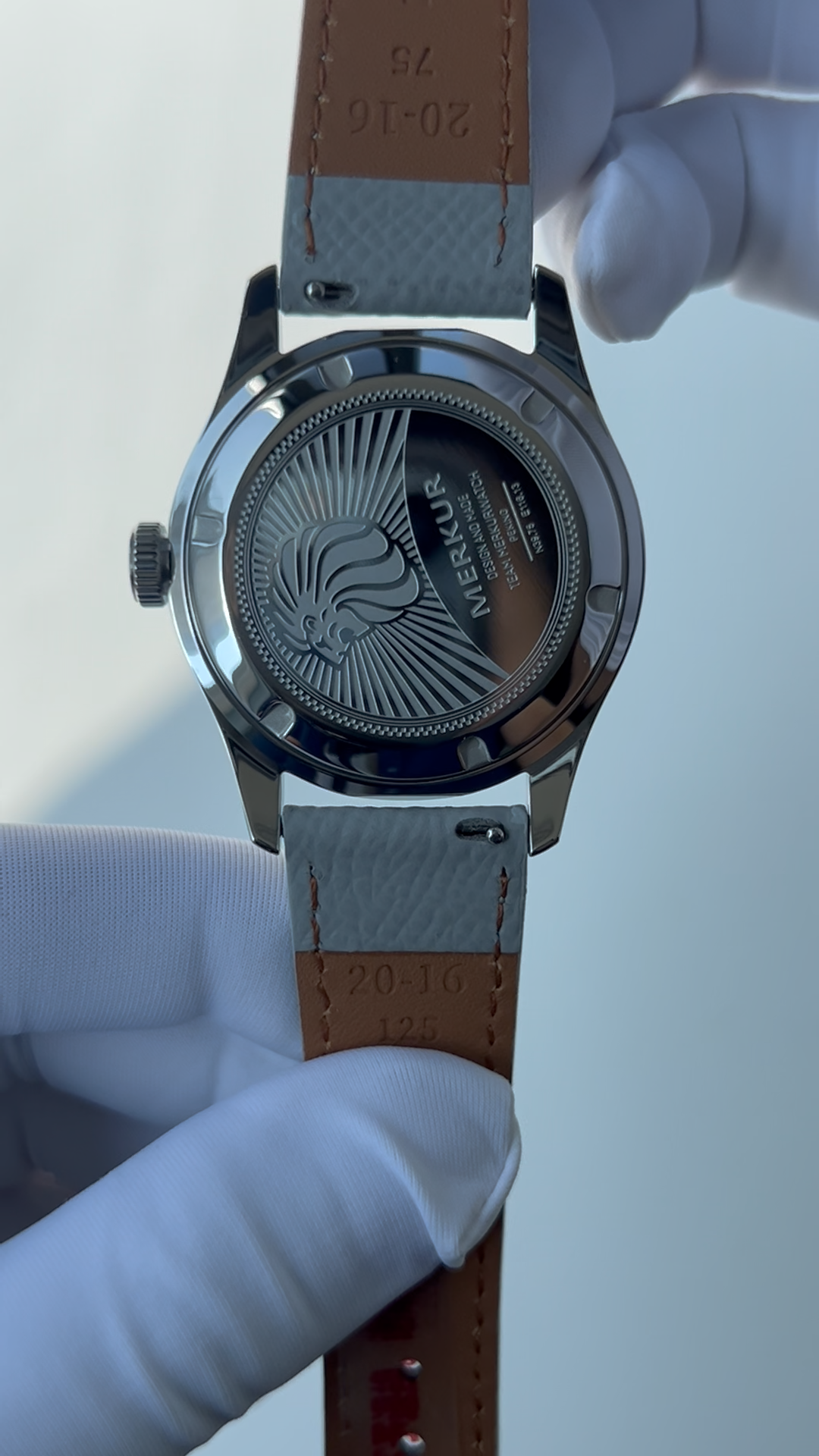

Stainless Steel. Diameter: 38.3 mm. Thickness: 12.8 mm. Lug width: 20.3 mm. Lug to lug: 46.5 mm. Water resistance: 5 ATM. Weight: 61 grams (the whole watch including strap). Luminescence: No lume. Dial: White. Plain finish. Pad-printed. Crystal: Mineral Crystal. Double Domed. Case back: Screw-Down Notched. Not Transparent. Stainless Steel case back. Crown:Push-Pull. Fluted Cylinder shape. Stainless Steel crown. Signed with the Merkur watch logo. Crown diameter: 6.9 mm.

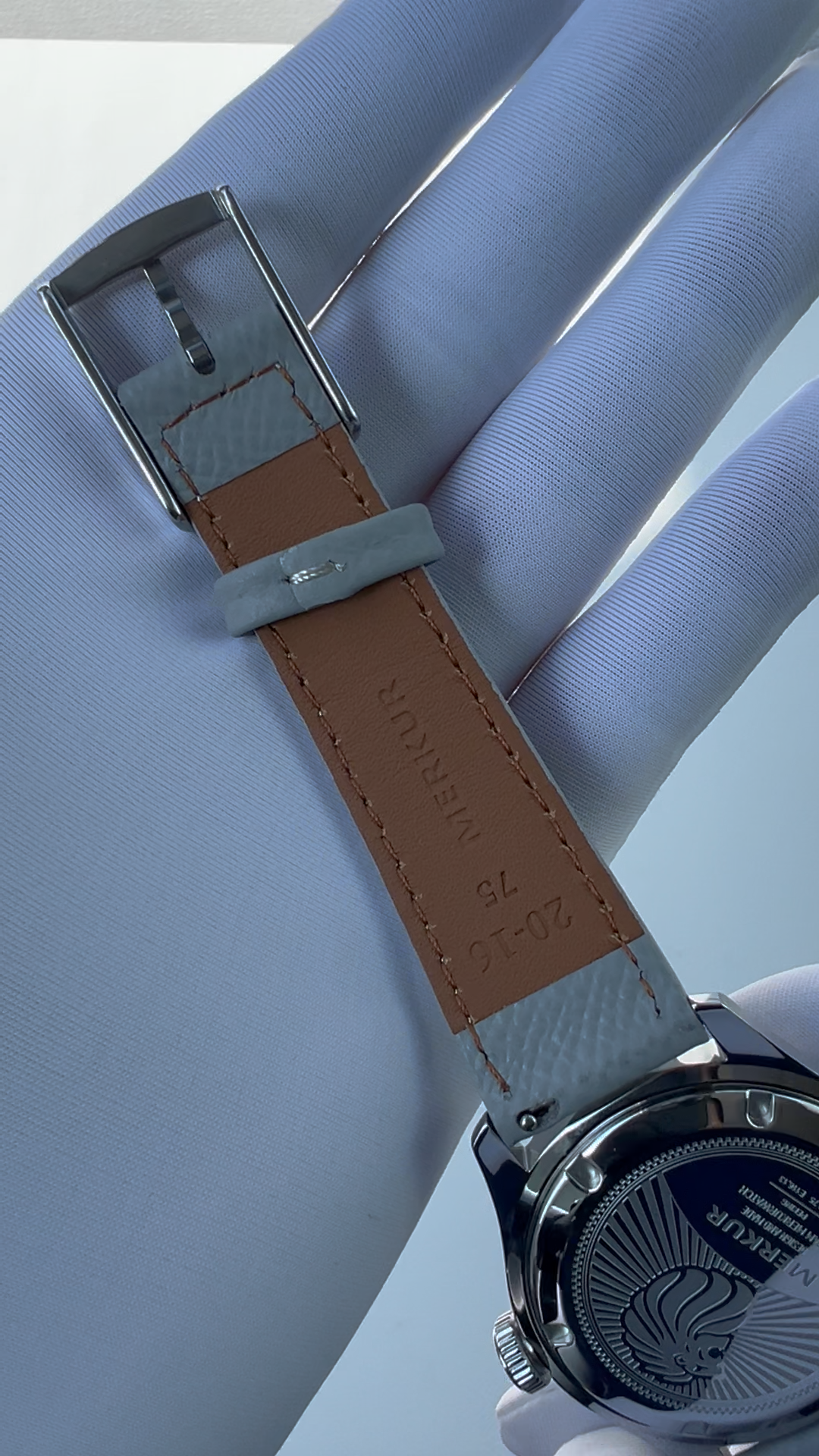

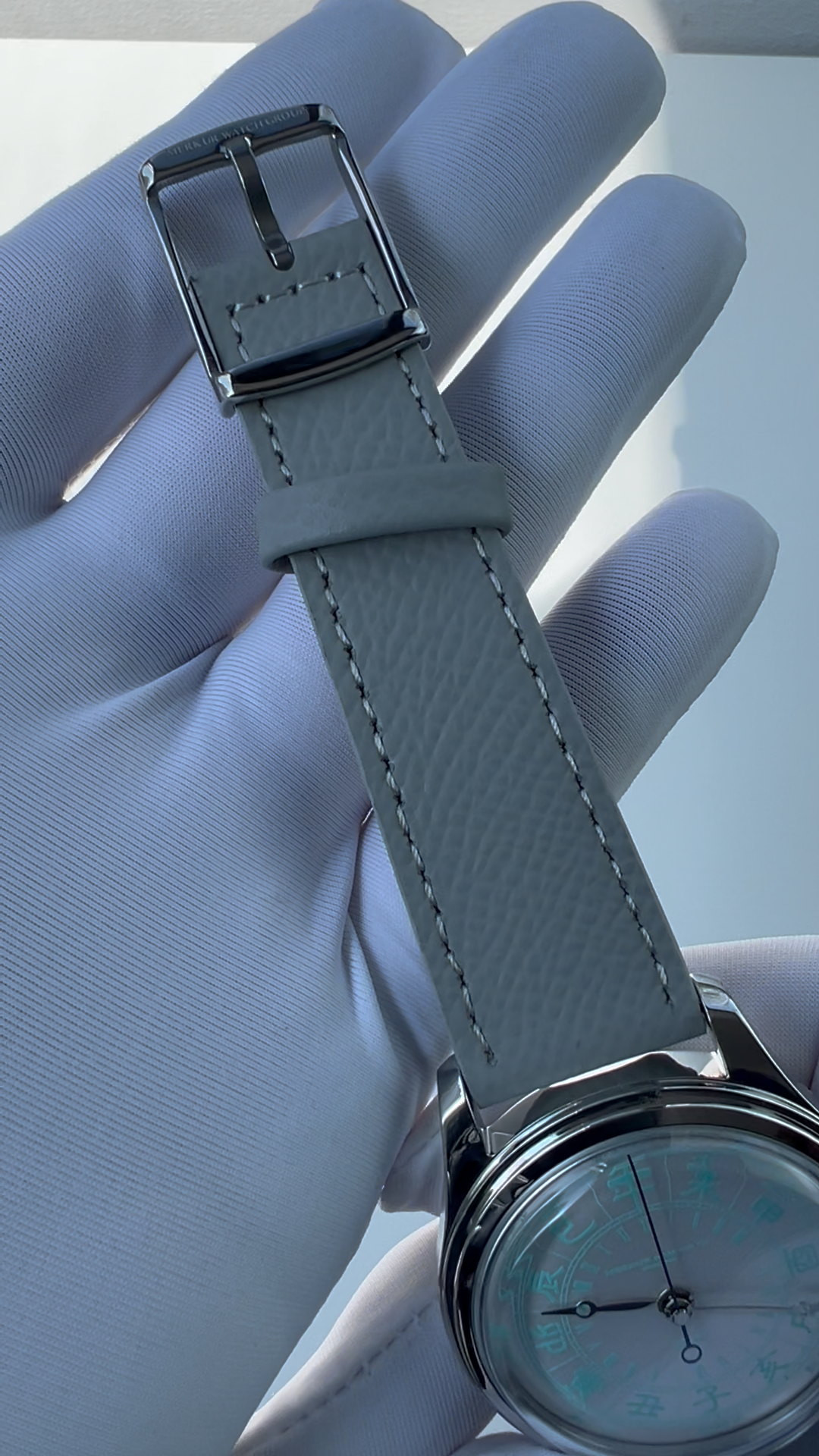

STRAP

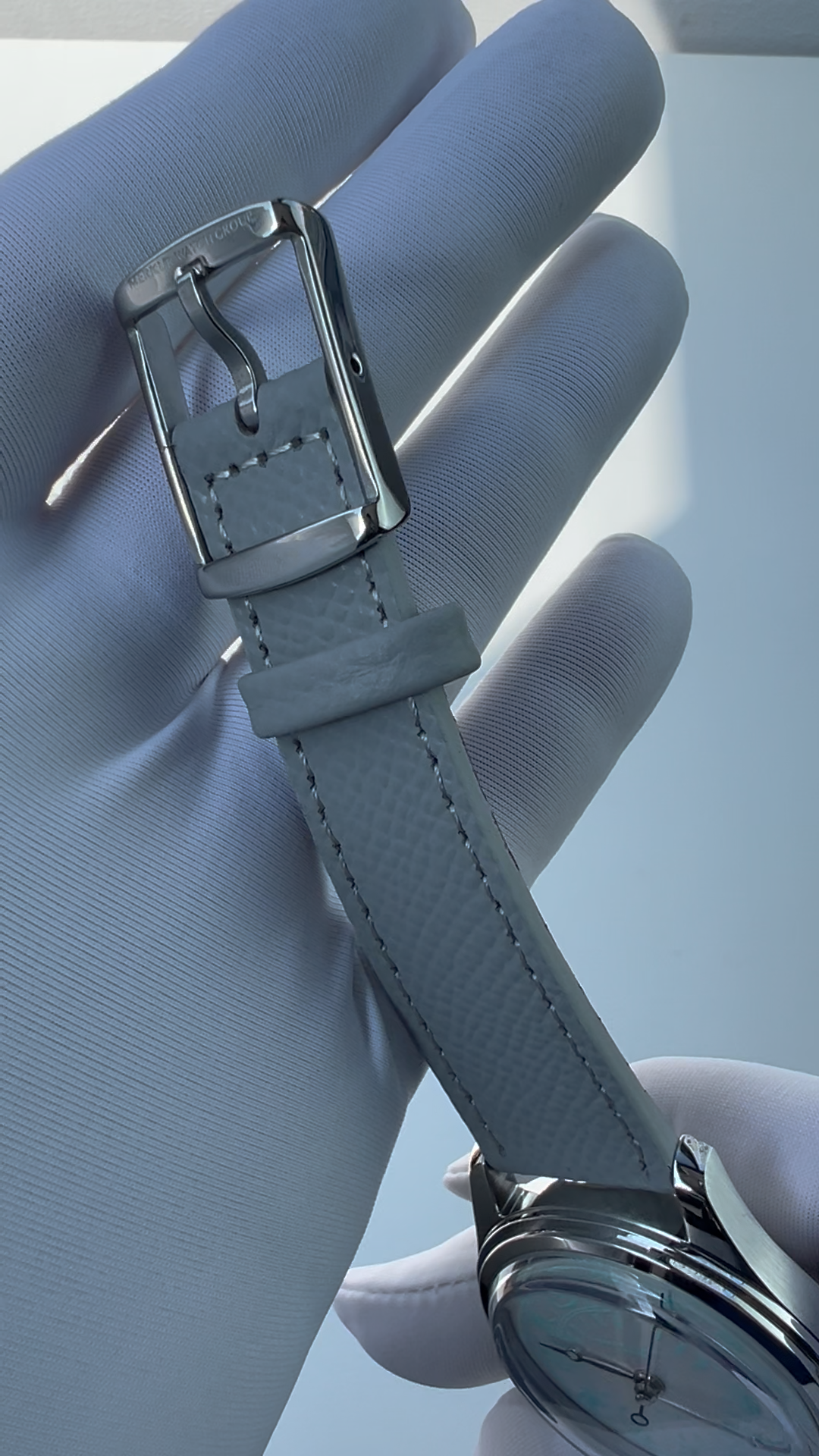

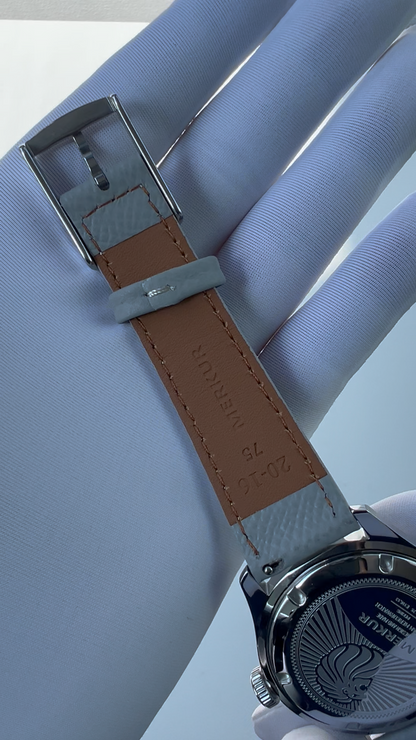

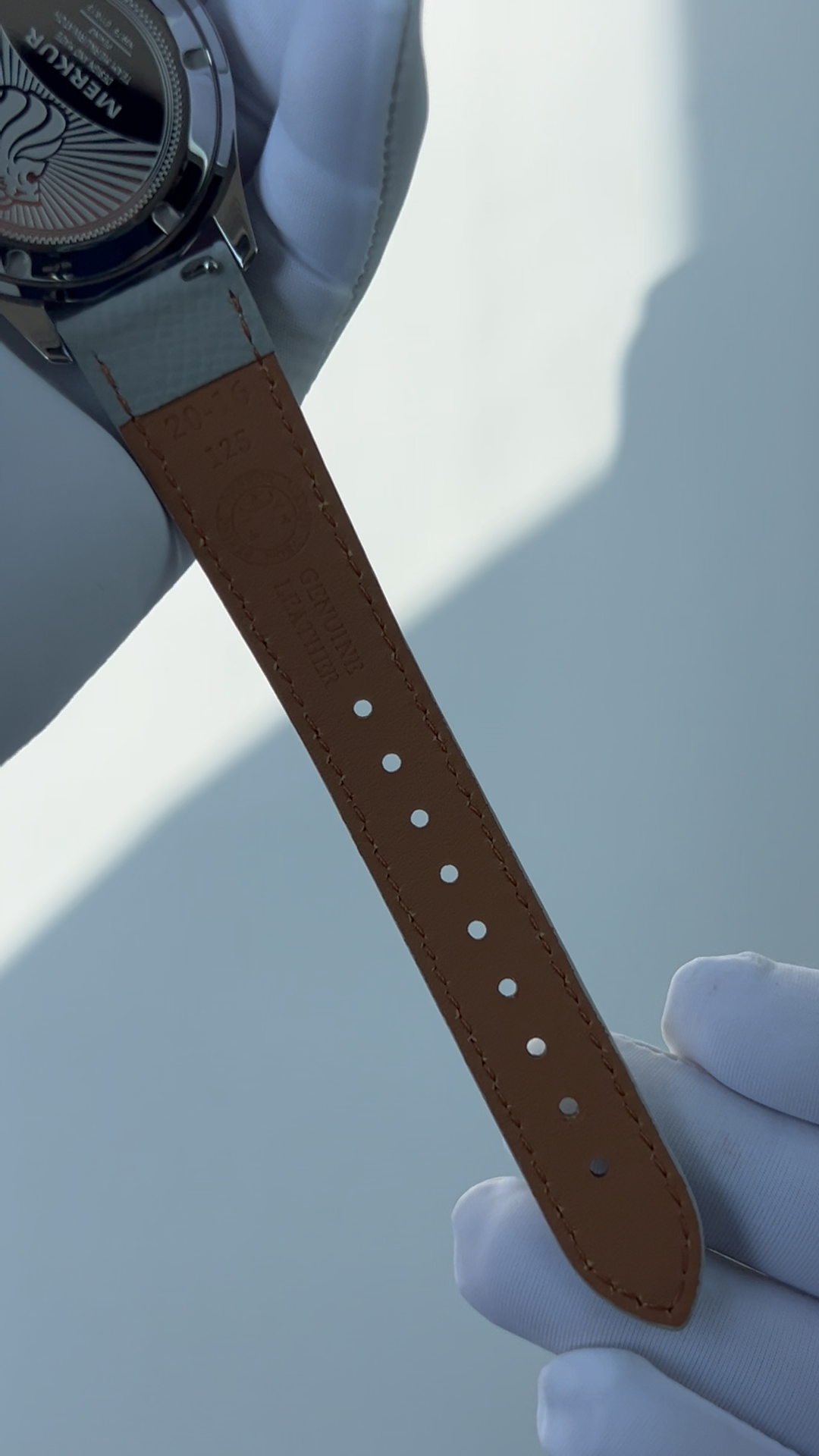

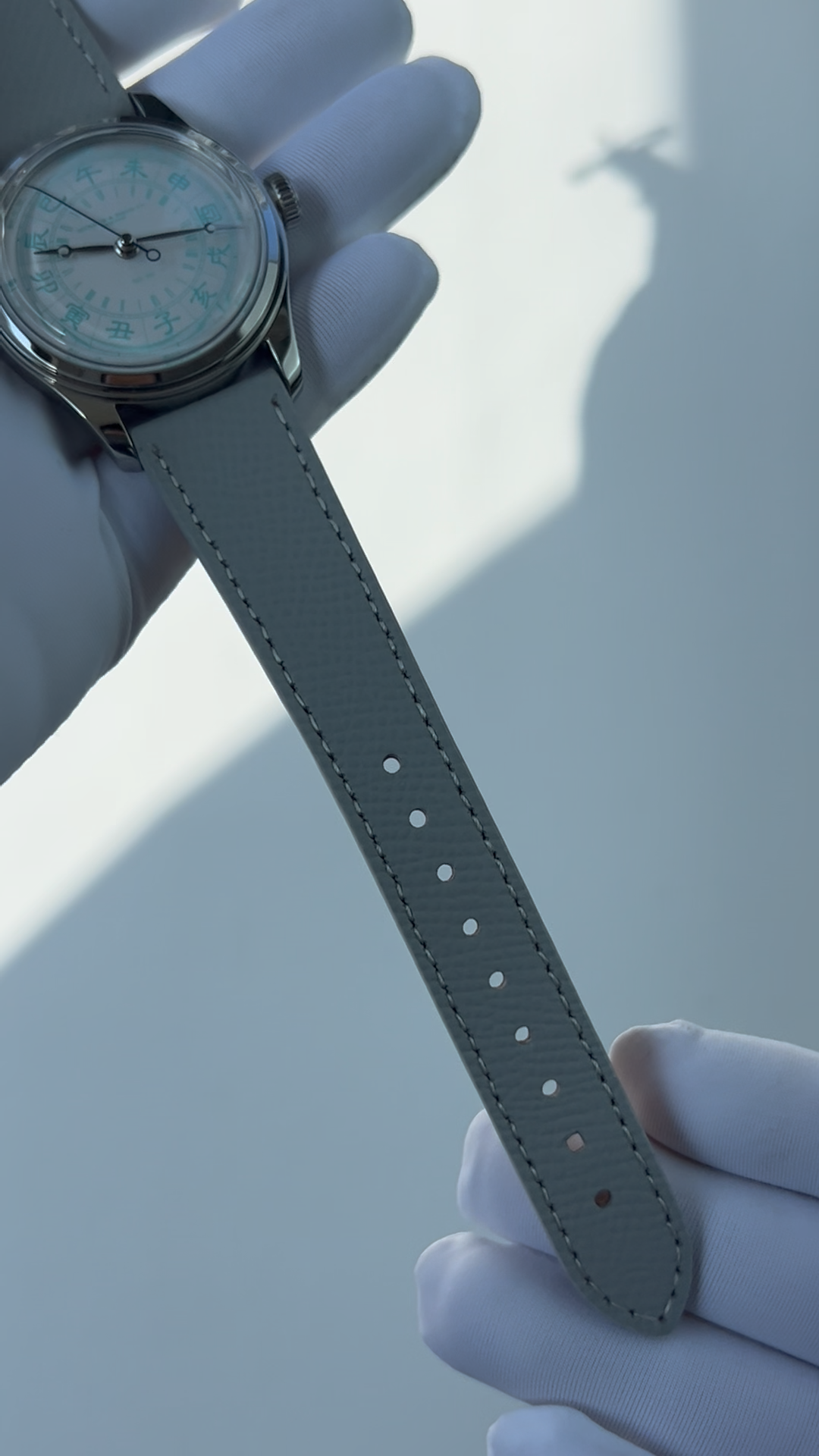

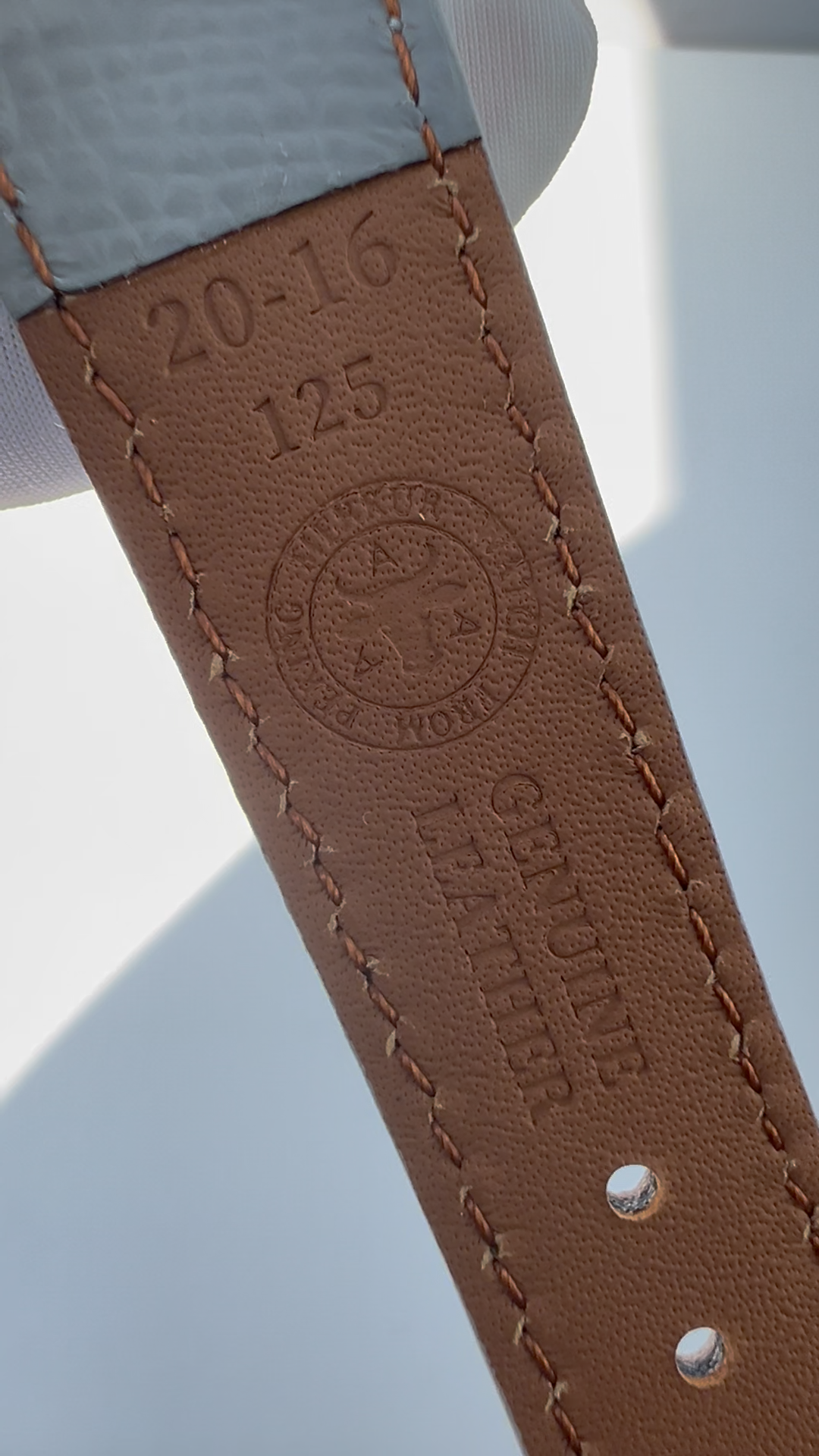

Grey. Cowhide Leather. Quick release: Remove strap from case without tool. Fit for case lug width: 20.3 mm. Fit for clasp lug width: 16.2 mm. Clasp:Pin Buckle. Stainless Steel clasp.
